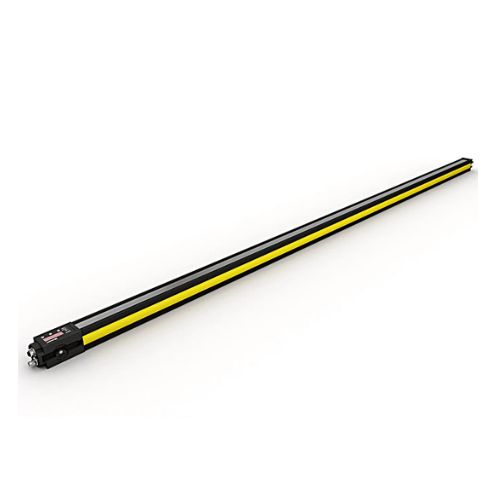

    SEFG638 - Compact Safety Light Curtain with User-Friendly Setup and Detection

    SEFG638 - Compact Safety Light Curtain with User-Friendly Setup and Detection

    SKU: SEFG638   Download PDF

    Select a Variant:
    • SEFG638 - Compact Safety Light Curtain with User-Friendly Setup and Detection
    Qty:
    Now $4,387.00   Web pricing policy
    BEFORE   $0.00 Now $4,387.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Enhance your safety systems with this versatile safety light curtain, designed for seamless integration thanks to its innovative mounting technology and compact size The visible red light simplifies the alignment process between the emitter and receiver, complemented by a signal strength display for easy monitoring With the wTeach2 software, users can effortlessly configure settings and conduct diagnostics through the IO-Link interface.

    Additionally, configurations can be conveniently saved to a microSD card for quick replication across multiple units Comprehensive blanking and muting functions make this light curtain an optimal choice for safely managing the entry and exit of objects in hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range 0.25 ... 7 m
     Housing Length (L) 1,310 mm
     Safety Field Height (SFH) 1,211 mm
     Resolution 14 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 21.6 ms
     Response time (special) 31.9 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
