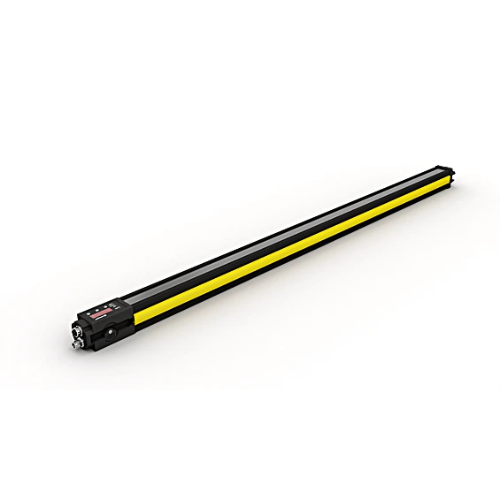

SEFG637 - Compact Safety Light Curtain with IO-Link & Easy Integration

SEFG637 - Compact Safety Light Curtain with IO-Link & Easy Integration

SKU: SEFG637 Download PDF

Variant:
  • SEFG637 - Compact Safety Light Curtain with IO-Link & Easy Integration
Now $40.60
BEFORE   $0.00 Now $40.60
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your safety protocols with this innovative light curtain, engineered for easy integration into various systems through its smart mounting technology and compact design The visible red light and signal strength indicator facilitate straightforward alignment between the emitter and receiver Thanks to the intuitive wTeach2 software, adjustments and diagnostics via the IO-Link interface are a breeze.

You can conveniently save configurations onto a microSD card for quick replication across multiple units With comprehensive blanking and muting options, this solution is tailored to effectively manage the safe transit of items in and out of hazardous areas.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Optical Data Range 0.25 ... 7 m
 Housing Length (L) 1,160 mm
 Safety Field Height (SFH) 1,061 mm
 Resolution 14 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Electrical Data Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) ≤ 350 mA
 Response Time 19.8 ms
 Response time (special) 29.2 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current < 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Mechanical Data Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 8-pin
 Safety-relevant Data ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 General Data Scope of delivery ZEFX001 mounting
 Function Finger Protection yes
 Scope of functions Muting and blanking
 Output IO-Link yes
