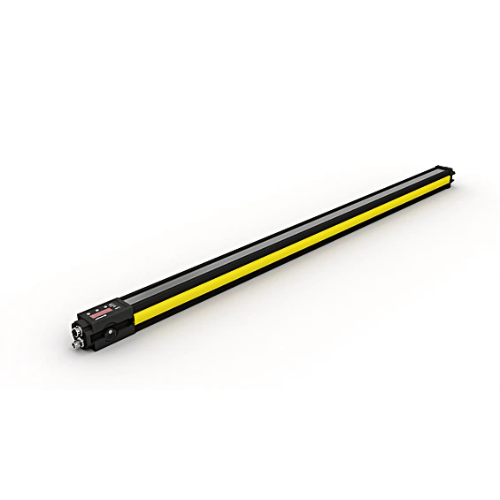

    SEFG636 - Compact Safety Light Curtain with Easy Setup and Customization

    SEFG636 - Compact Safety Light Curtain with Easy Setup and Customization

    SKU: SEFG636   Download PDF

    Select a Variant:
    • SEFG636 - Compact Safety Light Curtain with Easy Setup and Customization
    Qty:
    Now $3,873.00   Web pricing policy
    BEFORE   $0.00 Now $3,873.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Experience enhanced safety with our versatile light curtain, expertly designed for seamless integration into various systems through its clever mounting technology and compact design The alignment process for the emitter and receiver is made simple with the aid of visible red light and a signal strength indicator Utilizing the intuitive wTeach2 software, adjusting settings and diagnosing issues is effortless via the IO-Link interface.

    Furthermore, settings can be easily saved to a microSD card for quick replication across multiple units With its comprehensive blanking and muting features, this light curtain provides a tailored safety solution for efficiently managing the entry and exit of objects in potentially hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Optical Range 0.25 ... 7 m
     Housing Length (L) 1,009 mm
     Safety Field Height (SFH) 910 mm
     Resolution 14 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 18 ms
     Temperature Range -30 ... 55 °C
     Storage Temperature -30 ... 70 °C
     Number of Safety Outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
