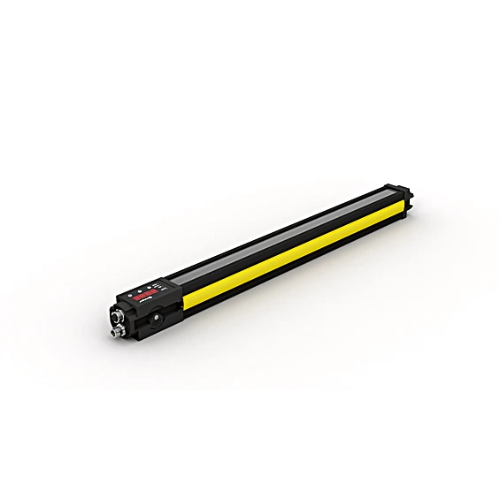

SEFG634 - Compact Safety Light Curtain with Easy Configuration & Red Alignment Signal

SEFG634 - Compact Safety Light Curtain with Easy Configuration & Red Alignment Signal

SKU: SEFG634 Download PDF

Variant:
  • SEFG634 - Compact Safety Light Curtain with Easy Configuration & Red Alignment Signal
Now $3,141.00
BEFORE   $0.00 Now $3,141.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The innovative safety light curtain features a compact design that allows for seamless integration into existing systems using advanced mounting technology Its user-friendly setup is enhanced by a visible red beam for easy alignment of the emitter and receiver, along with a signal strength indicator The accompanying wTeach2 software simplifies configuration and diagnostics through the IO-Link interface.

Users can conveniently save settings to a microSD card for quick application across multiple units With versatile blanking and muting capabilities, this product is tailored to ensure safe object transit in and out of potentially hazardous areas.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Range 0.25 ... 7 m
 Housing Length (L) 709 mm
 Safety Field Height (SFH) 610 mm
 Resolution 14 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) ≤ 350 mA
 Response Time 14.4 ms
 Response time (special) 21.1 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current < 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 8-pin
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEFX001 mounting
 Function Finger Protection yes
 Scope of functions Muting and blanking
 Output IO-Link yes
