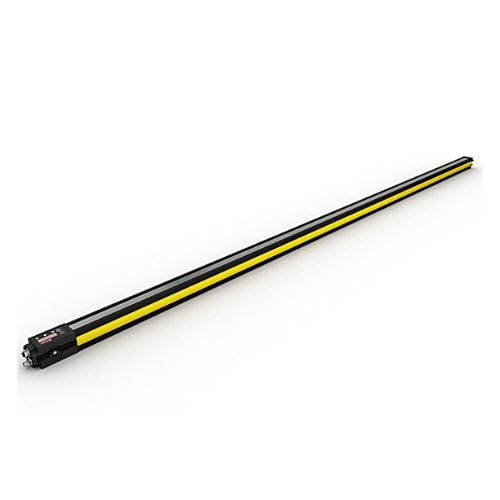

    SEFG622 - Compact Safety Light Curtain with Easy Integration and User-Friendly Features

    SEFG622 - Compact Safety Light Curtain with Easy Integration and User-Friendly Features

    SKU: SEFG622   Download PDF

    Select a Variant:
    • SEFG622 - Compact Safety Light Curtain with Easy Integration and User-Friendly Features
    Qty:
    Now $4,093.00   Web pricing policy
    BEFORE   $0.00 Now $4,093.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Ensure safety in your operations with the versatile safety light curtain featuring an innovative mounting design and a compact structure for seamless integration The emitter and receiver alignment is made effortless thanks to a visible red light indicator and a signal strength display With the intuitive wTeach2 software, you can easily configure settings and perform diagnostics through the IO-Link interface.

    Additionally, settings can be saved to a microSD card for quick duplication on similar devices With comprehensive blanking and muting options, this curtain is tailored to provide effective safety solutions for transporting items in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range: 0.25 ... 20 m
     Housing Length (L): 1,911 mm
     Safety Field Height (SFH): 1,812 mm
     Resolution: 30 mm
     Light Source: Red Light
     Max. Ambient Light: 10,000 Lux
     Opening Angle: ± 2.5 °
     Sensor Type: Receiver
     Supply Voltage: 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V): ≤ 350 mA
     Response Time: 18 ms
     Response time (special): 26.5 ms
     Temperature Range: -30 ... 55 °C
     Storage temperature: -30 ... 70 °C
     Number of safety outputs (OSSDs): 2
     Safety Output Voltage Drop: ≤ 2.3 V
     PNP Safety Output / Switching Current: ≤ 300 mA
     Number of Signal Outputs: 1
     Signal Output Voltage Drop: < 2.5 V
     Signal Output / Switching Current: < 100 mA
     Short Circuit Protection: yes
     Overload Protection: yes
     Interface: IO-Link V1.1
     Protection Class: III
     Housing Material: Aluminum, anodised
     Optic Cover: Plastic, PC
     Degree of Protection: IP65, IP67
