Home / SENSORS / SEFG621 - Compact Safety Light Curtain with User-Friendly Setup
1 1

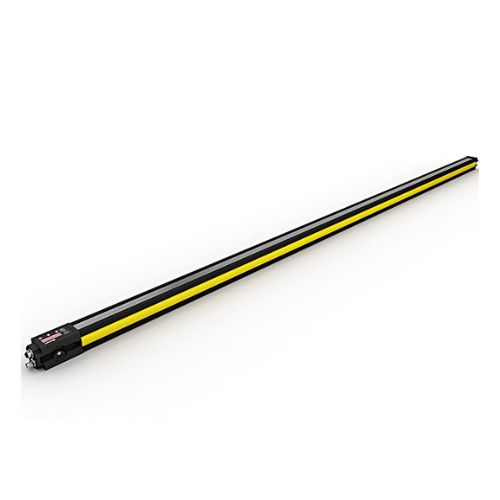

SEFG621 - Compact Safety Light Curtain with User-Friendly Setup

SEFG621 - Compact Safety Light Curtain with User-Friendly Setup

SKU: SEFG621 Download PDF

Variant:
  • SEFG621 - Compact Safety Light Curtain with User-Friendly Setup
Now $3,888.00
BEFORE   $0.00 Now $3,888.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Integrate safety seamlessly into your systems with this innovative light curtain, featuring a compact design and smart mounting technology The red alignment light and signal strength indicator simplify the setup of the emitter and receiver With the intuitive wTeach2 software, configuring and diagnosing via the IO-Link interface is a breeze Easily save and replicate settings on a microSD card for quick transfers between devices.

Additionally, its extensive blanking and muting capabilities provide tailored solutions for safely managing the movement of objects in and out of hazardous areas.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Range 0.25 ... 20 m
 Housing Length (L) 1,760 mm
 Safety Field Height (SFH) 1,662 mm
 Resolution 30 mm
 Light Source Red Light
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Receiver
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) ≤ 350 mA
 Response Time 17.2 ms
 Response time (special) 25.3 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current < 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 8-pin
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
