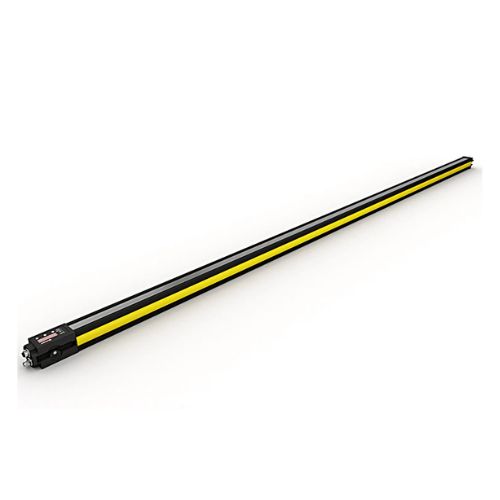

    SEFG620 - Compact Safety Light Curtain for Flexible Integration

    SEFG620 - Compact Safety Light Curtain for Flexible Integration

    SKU: SEFG620   Download PDF

    Select a Variant:
    • SEFG620 - Compact Safety Light Curtain for Flexible Integration
    Qty:
    Now $3,684.00   Web pricing policy
    BEFORE   $0.00 Now $3,684.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Enhance your safety systems with this innovative light curtain, designed for flexible integration thanks to its smart mounting technology and compact design The visible red light, along with the signal strength indicator, simplifies the alignment between the emitter and receiver With the intuitive wTeach2 software, adjusting settings and performing diagnostics through the IO-Link interface is a breeze.

    You can easily save configurations to a microSD card for quick replication across multiple devices Its versatile blanking and muting features provide tailored solutions for efficiently managing the movement of objects in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range 0.25 ... 20 m
     Housing Length (L) 1,610 mm
     Safety Field Height (SFH) 1,511 mm
     Resolution 30 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 16.2 ms
     Response time (special) 23.8 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65 IP67
     Connection M12 × 1; 8-pin
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     PFHD ≤ 1.8 × 10-8
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
     Scope of delivery ZEFX001 mounting
     Function Hand Protection yes
     Scope of functions Muting and blanking
     Output IO-Link yes
