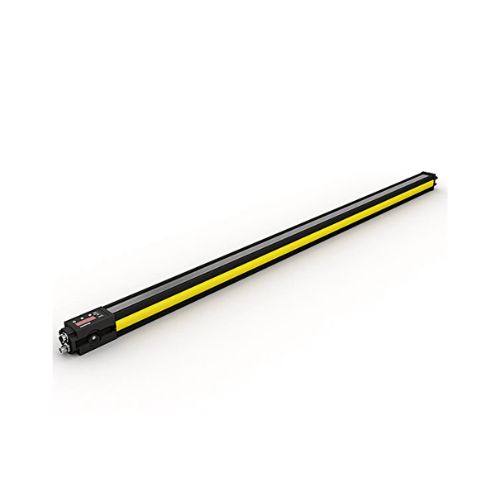

    SEFG618 - Compact Safety Light Curtain with Easy Alignment and Configuration

    SEFG618 - Compact Safety Light Curtain with Easy Alignment and Configuration

    SKU: SEFG618   Download PDF

    Select a Variant:
    • SEFG618 - Compact Safety Light Curtain with Easy Alignment and Configuration
    Qty:
    Now $3,313.00   Web pricing policy
    BEFORE   $0.00 Now $3,313.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Enhance your safety measures with our innovative light curtain, expertly crafted for seamless integration into various systems Its compact design and smart mounting technology allow for flexible installation Simplifying the alignment process, the visible red light along with a signal strength indicator enhances visibility Thanks to the intuitive wTeach2 software, configuring settings and conducting diagnostics via the IO-Link interface is a breeze.

    Users can conveniently save these settings on a microSD card for quick replication across multiple units With comprehensive blanking and muting options, this solution is tailored to effectively manage object movement in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range 0.25 ... 20 m
     Housing Length (L) 1,310 mm
     Safety Field Height (SFH) 1,211 mm
     Resolution 30 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 14.4 ms
     Response time (special) 21.1 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     PFHD ≤ 1.8 × 10-8
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
     Function Hand Protection
     Scope of functions Muting and blanking
     Output IO-Link yes
