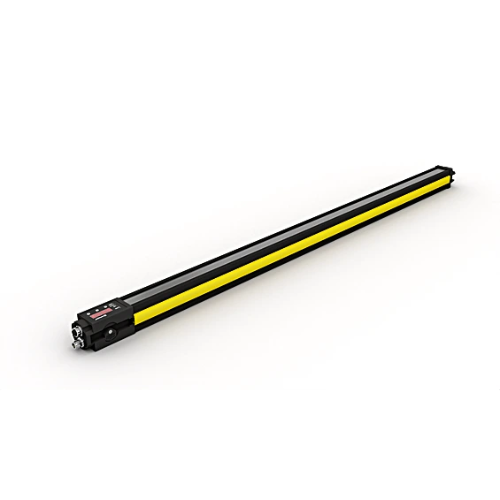

    SEFG616 - Compact Safety Light Curtain with User-Friendly wTeach2 Software

    SEFG616 - Compact Safety Light Curtain with User-Friendly wTeach2 Software

    SKU: SEFG616   Download PDF

    Select a Variant:
    • SEFG616 - Compact Safety Light Curtain with User-Friendly wTeach2 Software
    Qty:
    Now $2,937.00   Web pricing policy
    BEFORE   $0.00 Now $2,937.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Enhance your safety measures with this innovative light curtain, designed for seamless integration into various systems Featuring a compact design and intelligent mounting technology, setup is a breeze The emitter and receiver alignment is simplified with a visible red light and a signal strength indicator Thanks to the user-friendly wTeach2 software, configuring and diagnosing through the IO-Link interface is straightforward.

    You can also save your settings to a microSD card for easy replication across multiple devices With extensive blanking and muting options, this safety light curtain provides the perfect solution for safely managing objects entering and exiting hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Optical Data Range 0.25 ... 20 m
     Housing Length (L) 1,009 mm
     Safety Field Height (SFH) 910 mm
     Resolution 30 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Electrical Data Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 12.6 ms
     Response time (special) 18.4 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Mechanical Data Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     Safety-relevant Data ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     PFHD ≤ 1.8 × 10-8
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
     Function Hand Protection yes
     Scope of functions Muting and blanking
     Output IO-Link yes
