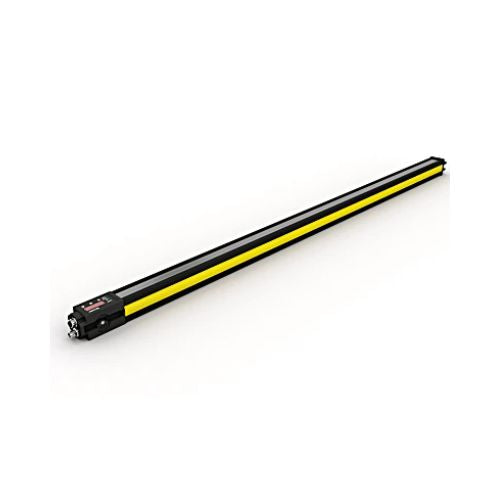

    SEFG615 - Compact Light Curtain with User-Friendly Configuration and Safety Features

    SEFG615 - Compact Light Curtain with User-Friendly Configuration and Safety Features

    SKU: SEFG615   Download PDF

    Select a Variant:
    • SEFG615 - Compact Light Curtain with User-Friendly Configuration and Safety Features
    Qty:
    Now $2,765.00   Web pricing policy
    BEFORE   $0.00 Now $2,765.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Enhance your safety measures with the versatile light curtain, designed for seamless integration into various systems thanks to its innovative mounting technology and compact design The visible red light aids in the easy alignment of the emitter and receiver, complemented by a signal strength indicator for efficiency With the intuitive wTeach2 software and IO-Link interface, configuring settings and conducting diagnostics becomes a breeze.

    You can conveniently save configurations to a microSD card, allowing for quick replication on other units Featuring comprehensive blanking and muting options, this safety solution adapts flawlessly to any application, ensuring safe transport of items in and out of hazard zones.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Optical Data Range 0.25 ... 20 m
     Housing Length (L) 859 mm
     Safety Field Height (SFH) 760 mm
     Resolution 30 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 11.8 ms
     Response time (special) 17.2 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     PFHD ≤ 1.8 × 10-8
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
