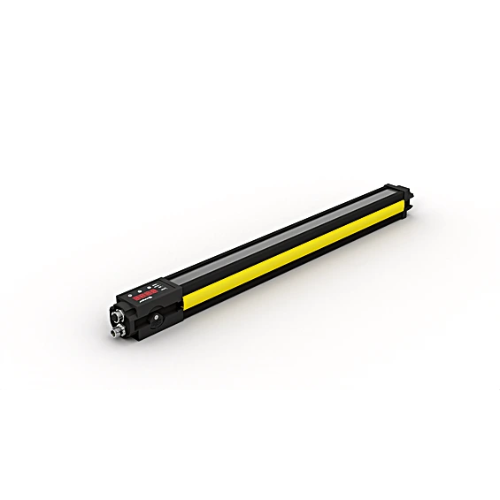

    SEFG614 - Compact Safety Light Curtain with User-Friendly Software and Smart Mounting

    SEFG614 - Compact Safety Light Curtain with User-Friendly Software and Smart Mounting

    SKU: SEFG614   Download PDF

    Select a Variant:
    • SEFG614 - Compact Safety Light Curtain with User-Friendly Software and Smart Mounting
    Qty:
    Now $2,563.00   Web pricing policy
    BEFORE   $0.00 Now $2,563.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Experience seamless integration with the safety light curtain, featuring a compact design and innovative mounting technology The alignment process for the emitter and receiver is made effortless with a visible red light and an intuitive signal strength display Equipped with the user-friendly wTeach2 software, adjusting settings and performing diagnostics through the IO-Link interface is a breeze You can easily save configurations to a microSD card for quick replication on additional devices.

    With extensive blanking and muting capabilities, this solution ensures safe and efficient transportation of objects in and out of hazardous areas.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Higher levels of safety and availability thanks to intelligent muting functions.

      •Multifunctional thanks to measuring function.

      •Quick duplication of settings via microSD memory card.

    Specifications:

     Range 0.25 ... 20 m
     Housing Length (L) 709 mm
     Safety Field Height (SFH) 610 mm
     Resolution 30 mm
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 10.8 ms
     Response time (special) 15.7 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop < 2.5 V
     Signal Output / Switching Current < 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1; 8-pin
     Safety-relevant Data {'ESPE Type (EN 61496)': '4', 'Performance Level (EN ISO 13849-1)': 'Cat. 4 PL e', 'PFHD': '≤ 1.8 × 10-8', 'Mission Time TM (EN ISO 13849-1)': '20 a', 'Safety Integrity Level (EN 61508)': 'SIL3', 'Safety Integrity Level (EN 62061)': 'SILCL3'}
     Function Hand Protection
     Scope of functions Muting and blanking
     Output IO-Link yes
