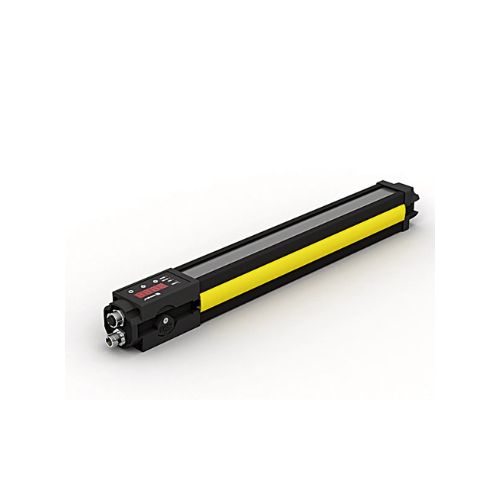

SEFG612 - Compact Safety Light Curtain with Easy Integration and User-Friendly Software

SKU: SKU: SEFG612 Download PDF

Variant:

SEFG612 - Compact Safety Light Curtain with Easy Integration and User-Friendly Software

Now $21.00

~~BEFORE $0.00~~ Now $21.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This safety light curtain is designed for seamless integration into various systems, featuring a compact housing and innovative mounting technology The visible red light assists in aligning the emitter and receiver, while the signal strength display provides additional clarity With the intuitive wTeach2 software, adjusting settings and conducting diagnostics through the IO-Link interface is straightforward.

Users can easily save configurations to a microSD card for quick application on other devices Comprehensive blanking and muting options make it an ideal solution for safely managing the movement of objects in and out of hazardous areas.

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Higher levels of safety and availability thanks to intelligent muting functions.

•Multifunctional thanks to measuring function.

•Quick duplication of settings via microSD memory card.

Specifications:

Range	0.25 ... 20 m
Housing Length (L)	408 mm
Safety Field Height (SFH)	309 mm
Resolution	30 mm
Light Source	Red Light
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Receiver
Supply Voltage	19.2 ... 28.8 V DC
Current Consumption (Ub = 24 V)	≤ 350 mA
Response Time	9 ms
Response time (special)	13 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	< 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Connection	M12 × 1; 8-pin
Safety-relevant Data	{'ESPE Type (EN 61496)': '4', 'Performance Level (EN ISO 13849-1)': 'Cat. 4 PL e', 'PFHD': '≤ 1.8 × 10-8', 'Mission Time TM (EN ISO 13849-1)': '20 a', 'Safety Integrity Level (EN 61508)': 'SIL3', 'Safety Integrity Level (EN 62061)': 'SILCL3'}
Function	Hand Protection
Scope of functions	Muting and blanking
Output IO-Link	yes
