SEFG540 - Compact Safety Light Curtain with User-Friendly Software Integration

SEFG540 - Compact Safety Light Curtain with User-Friendly Software Integration

SKU: SEFG540 Download PDF

Variant:
  • SEFG540 - Compact Safety Light Curtain with User-Friendly Software Integration
Now $3,829.00
BEFORE   $0.00 Now $3,829.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

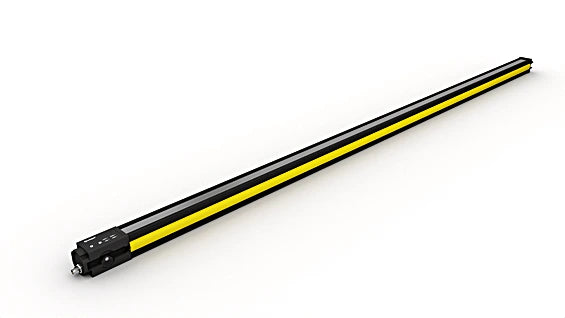

This versatile safety light curtain is designed for seamless integration into various systems, featuring an innovative mounting technology and a compact design The emitter and receiver alignment is facilitated by a clear visible red light and a signal strength indicator With the intuitive wTeach2 software, configuring settings and conducting diagnostics via the IO-Link interface is simple and efficient.

Users can easily save configuration settings to a microSD card and replicate them on additional units Additionally, the extensive range of muting functions provides tailored solutions for safely managing the entry and exit of objects within hazard zones.

Specifications:

 Optical Range 0.25 ... 7 m
 Housing Length (L) 1,610 mm
 Safety Field Height (SFH) 1,511 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Opening Angle ± 2.5 °
 Sensor Type Emitter
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) ≤ 100 mA
 Response Time 25.2 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 5-pin
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
