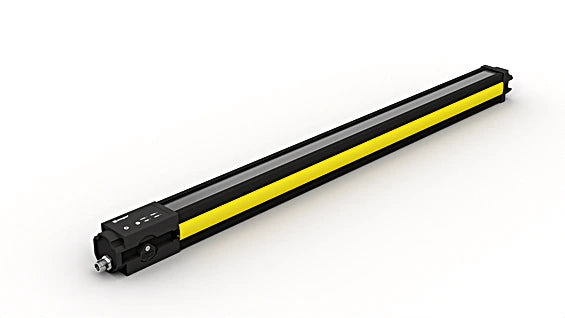

SEFG534 - Compact Safety Light Curtain with Easy Alignment and IO-Link Interface

SEFG534 - Compact Safety Light Curtain with Easy Alignment and IO-Link Interface

SKU: SEFG534   Download PDF

Select a Variant:
  • SEFG534 - Compact Safety Light Curtain with Easy Alignment and IO-Link Interface
Qty:
Now $2,192.00   Web pricing policy
BEFORE   $0.00 Now $2,192.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience seamless integration with the safety light curtain, designed with a practical mounting system and a compact form factor The alignment of the emitter and receiver is made straightforward with the aid of a visible red light and a signal strength indicator The user-friendly wTeach2 software simplifies configuration and diagnostics through the IO-Link interface, allowing for easy adjustments.

You can conveniently save your settings to a microSD card for quick replication on other devices With comprehensive muting options, this product provides tailored solutions for safely moving objects in and out of hazardous areas.

Features and Benefits:

    •Flexibly integrated into systems with compact housing.

    •Simplified alignment with visible red light and signal strength display.

    •User-friendly wTeach2 software for easy settings and diagnostics.

    •Settings can be saved to microSD card for duplication.

    •Extensive muting functions for safe object transport.

Specifications:

 Range 0.25 ... 7 m
 Housing Length (L) 709 mm
 Safety Field Height (SFH) 610 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Opening Angle ± 2.5 °
 Sensor Type Emitter
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) ≤ 100 mA
 Response Time 14.4 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65/IP67
 Connection M12 × 1; 5-pin
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEFX001 mounting
 Function Finger Protection yes
 Output IO-Link yes
