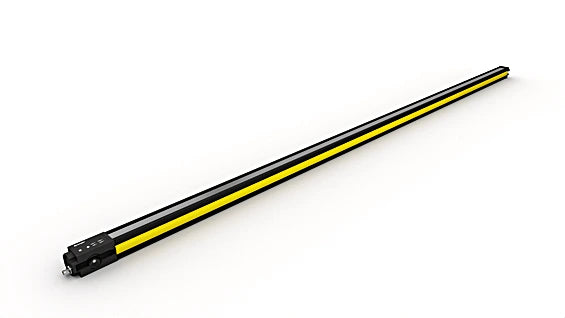

SEFG522 - Compact Safety Light Curtain with Easy Integration and Settings Options

SEFG522 - Compact Safety Light Curtain with Easy Integration and Settings Options

SKU: SEFG522   Download PDF

Select a Variant:
  • SEFG522 - Compact Safety Light Curtain with Easy Integration and Settings Options
Qty:
Now $2,923.00   Web pricing policy
BEFORE   $0.00 Now $2,923.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience seamless integration with the safety light curtain, featuring an innovative mounting technology and a compact design Alignment between the emitter and receiver is enhanced by a visible red light and a signal strength indicator, making setup straightforward The wTeach2 software allows for effortless configurations and diagnostics through the IO-Link interface You can easily save settings to a microSD card, enabling quick replication on similar devices.

With its comprehensive muting functions, this safety solution is tailored to ensure secure transport of objects in and out of hazardous areas, catering to various applications effectively.

Features and Benefits:

    •Flexibly integrates into systems.

    •Compact housing.

    •Visible red light for alignment.

    •Signal strength display.

    •User-friendly wTeach2 software for easy settings and diagnosis.

    •Settings can be saved and duplicated using a microSD card.

    •Extensive muting functions for safely transporting objects.

Specifications:

 Range 0.25 ... 20 m
 Safety Field Height (SFH) 1,812 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Opening Angle ± 2.5 °
 Sensor Type Emitter
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) ≤ 100 mA
 Response Time 18 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop ≤ 2.5 V
 Signal Output / Switching Current ≤ 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65 IP67
 Connection M12 × 1; 5-pin
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Hand Protection yes
