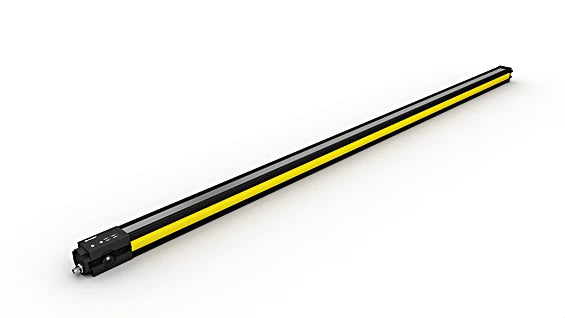

SEFG519 - Compact Safety Light Curtain with User-Friendly Settings

SKU: SKU: SEFG519 Download PDF

Select a Variant:

SEFG519 - Compact Safety Light Curtain with User-Friendly Settings

SET THE QTY:

Now $24.20 Web pricing policy

~~BEFORE $0.00~~ Now $24.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your safety protocols with this innovative light curtain, designed for seamless integration into existing systems thanks to its compact design and clever mounting technology The visible red light simplifies the alignment process between the emitter and receiver, while the signal strength display offers clear feedback With the intuitive wTeach2 software, adjusting settings and performing diagnostics via the IO-Link interface is a breeze.

You can easily save settings on a microSD card for quick replication across multiple units The extensive muting options make it adaptable for any application, ensuring secure transport of objects in and out of hazardous areas.

Features and Benefits:

•Flexibly integrated into systems with compact housing.

•Simplified emitter and receiver alignment with visible red light.

•User-friendly wTeach2 software for easy settings and diagnosis.

•Settings can be saved to a microSD card.

•Extensive muting functions for safe transport of objects.

Specifications:

Optical Data Range	0.25 ... 20 m
Housing Length (L)	1,460 mm
Safety Field Height (SFH)	1,361 mm
Resolution	30 mm
Light Source	Red Light
Wavelength	630 nm
Opening Angle	± 2.5 °
Sensor Type	Emitter
Supply Voltage	19.2 ... 28.8 V DC
Current Consumption (Ub = 24 V)	≤ 100 mA
Response Time	15.4 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	≤ 2.5 V
Signal Output / Switching Current	≤ 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Connection	M12 × 1; 5-pin
ESPE Type (EN 61496)	4
Performance Level (EN ISO 13849-1)	Cat. 4 PL e
PFHD	≤ 1.8 × 10-8
Mission Time TM (EN ISO 13849-1)	20 a
Safety Integrity Level (EN 61508)	SIL3
Safety Integrity Level (EN 62061)	SILCL3
Function Hand Protection	yes
