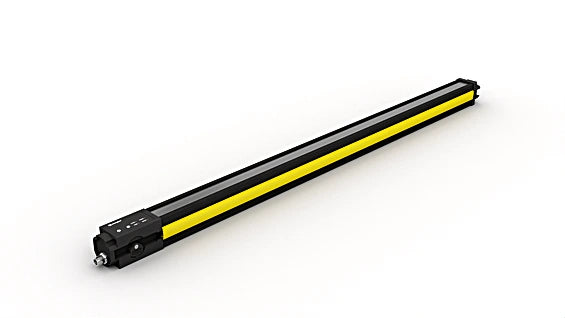

SEFG515 - Compact Safety Light Curtain with Easy Alignment and IO-Link Integration

SEFG515 - Compact Safety Light Curtain with Easy Alignment and IO-Link Integration

SKU: SEFG515 Download PDF

Variant:
  • SEFG515 - Compact Safety Light Curtain with Easy Alignment and IO-Link Integration
Now $1,884.00
BEFORE   $0.00 Now $1,884.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless safety integration with our innovative safety light curtain, designed for easy mounting and compact in its housing The visible red light allows for effortless alignment between the emitter and receiver, while a signal strength display ensures accurate setup With the user-friendly wTeach2 software, configuring settings and diagnosing via the IO-Link interface is a breeze You can conveniently save your configurations to a microSD card for quick replication across multiple units.

Furthermore, an array of muting functions provides tailored solutions, enabling the safe transport of objects in and out of hazardous areas.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Range 0.25 ... 20 m
 Housing Length (L) 859 mm
 Safety Field Height (SFH) 760 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Opening Angle ± 2.5 °
 Sensor Type Emitter
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption (Ub = 24 V) ≤ 100 mA
 Response Time 11.8 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop ≤ 2.5 V
 Signal Output / Switching Current ≤ 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 5-pin
 Safety-relevant Data {'ESPE Type (EN 61496)': '4', 'Performance Level (EN ISO 13849-1)': 'Cat. 4 PL e', 'PFHD': '≤ 1.8 × 10-8', 'Mission Time TM (EN ISO 13849-1)': '20 a', 'Safety Integrity Level (EN 61508)': 'SIL3', 'Safety Integrity Level (EN 62061)': 'SILCL3', 'Function Hand Protection': 'yes'}
