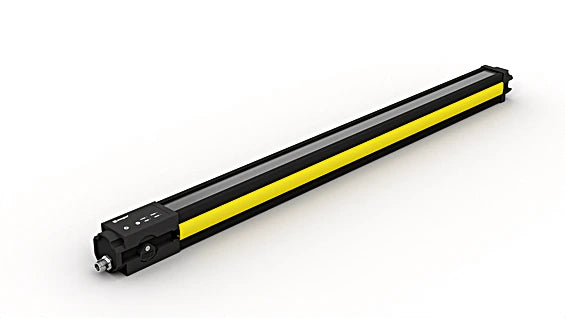

SEFG514 - Compact Safety Light Curtain with Easy Integration & Setup

SKU: SKU: SEFG514 Download PDF

Select a Variant:

SEFG514 - Compact Safety Light Curtain with Easy Integration & Setup

SET THE QTY:

Now $1,718.00 Web pricing policy

~~BEFORE $0.00~~ Now $1,718.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience seamless integration with this sophisticated safety light curtain, designed with thoughtfully engineered mounting technology and a compact design The alignment between the emitter and receiver is made easy through a noticeable red light indicator and a signal strength display With the intuitive wTeach2 software, adjusting settings and diagnosing issues via the IO-Link interface is a straightforward process.

Additionally, configurations can be easily saved onto a microSD card for rapid replication on other units Comprehensive muting capabilities provide tailored solutions, ensuring safe transport of objects in and out of hazardous areas.

Features and Benefits:

•Visible red light and signal strength display simplify emitter and receiver alignment.

•User-friendly wTeach2 software for easy settings and diagnosis via IO-Link interface.

•Settings can be saved to a microSD card for quick duplication.

•Extensive muting functions for safe transport of objects.

Specifications:

Optical Data Range	0.25 ... 20 m
Housing Length (L)	709 mm
Safety Field Height (SFH)	610 mm
Resolution	30 mm
Light Source	Red Light
Wavelength	630 nm
Opening Angle	± 2.5 °
Sensor Type	Emitter
Supply Voltage	19.2 ... 28.8 V DC
Current Consumption (Ub = 24 V)	≤ 100 mA
Response Time	10.8 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	≤ 2.5 V
Signal Output / Switching Current	≤ 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65 IP67
Connection	M12 × 1; 5-pin
ESPE Type (EN 61496)	4
Performance Level (EN ISO 13849-1)	Cat. 4 PL e
PFHD	≤ 1.8 × 10-8
Mission Time TM (EN ISO 13849-1)	20 a
Safety Integrity Level (EN 61508)	SIL3
Safety Integrity Level (EN 62061)	SILCL3
Function Hand Protection	yes
