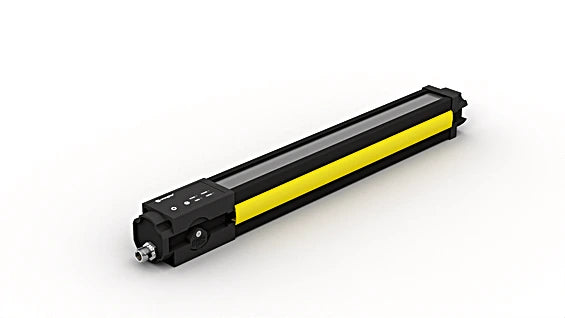

SEFG512 - Compact Safety Light Curtain with Easy Integration and User-Friendly Software

SEFG512 - Compact Safety Light Curtain with Easy Integration and User-Friendly Software

SKU: SEFG512   Download PDF

Select a Variant:
  • SEFG512 - Compact Safety Light Curtain with Easy Integration and User-Friendly Software
Qty:
Now $13.90   Web pricing policy
BEFORE   $0.00 Now $13.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Elevate your safety measures with this innovative safety light curtain, designed for seamless integration into various systems thanks to its compact housing and versatile mounting technology The visible red light simplifies the alignment process between the emitter and receiver, while the signal strength indicator provides easy monitoring With the user-friendly wTeach2 software, configuring settings and performing diagnostics through the IO-Link interface is a breeze.

Plus, you can save configurations to a microSD card for quick replication on other units An array of muting functions ensures that you can effectively and safely move objects in and out of the danger zone, making it an optimal choice for any application.

Features and Benefits:

    •Visible red light for easy alignment.

    •Signal strength display for monitoring.

    •User-friendly wTeach2 software for easy settings and diagnosis.

    •Settings can be saved to a microSD card.

    •Extensive muting functions for flexibility.

Specifications:

 Optical Range 0.25 ... 20 m
 Housing Length 408 mm
 Safety Field Height 309 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Opening Angle ± 2.5 °
 Sensor Type Emitter
 Supply Voltage 19.2 ... 28.8 V DC
 Current Consumption ≤ 100 mA
 Response Time 9 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop ≤ 2.5 V
 Signal Output / Switching Current ≤ 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Connection M12 × 1; 5-pin
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Function Hand Protection yes
