Description:

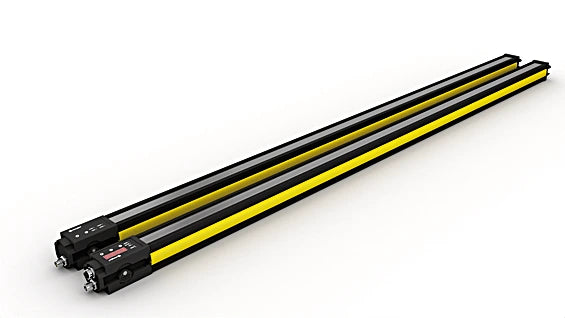

Ensure safety in your workspace with this innovative safety light curtain, designed for seamless integration into various systems thanks to its smart mounting technology and compact size The alignment process for the emitter and receiver is made easy through visible red light indicators and a signal strength display With the user-friendly wTeach2 software, adjusting settings and diagnosing issues via the IO-Link interface is straightforward.

You also have the option to save configurations to a microSD card, making it convenient to replicate settings across multiple units Its advanced muting capabilities provide flexible solutions for effectively managing the safe movement of objects in and out of hazardous zones.

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Higher levels of safety and availability thanks to intelligent muting functions.

•Multifunctional thanks to measuring function.

•Quick duplication of settings via microSD memory card.

Specifications:

Range	0.25 ... 7 m
Housing Length (L)	1,310 mm
Safety Field Height (SFH)	1,211 mm
Resolution	14 mm
Light Source	Red Light
Wavelength	630 nm
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Set
Supply Voltage	19.2 ... 28.8 V DC
Response Time	21.6 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	< 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Safety-relevant Data	{'ESPE Type (EN 61496)': '4', 'Performance Level (EN ISO 13849-1)': 'Cat. 4 PL e', 'PFHD': '≤ 1.8 × 10-8', 'Mission Time TM (EN ISO 13849-1)': '20 a', 'Safety Integrity Level (EN 61508)': 'SIL3', 'Safety Integrity Level (EN 62061)': 'SILCL3'}
Scope of delivery	ZEFX001 mounting
Function Finger Protection	yes
Output IO-Link	yes
