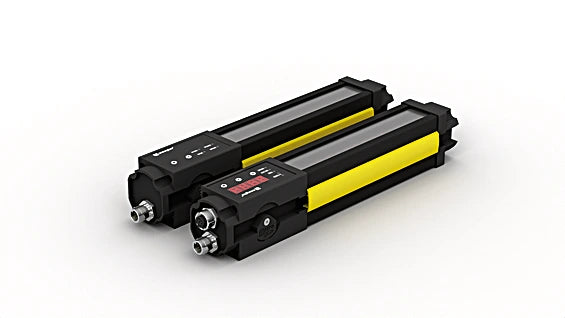

SEFG471 - Compact Safety Light Curtain with User-Friendly Configuration

SEFG471 - Compact Safety Light Curtain with User-Friendly Configuration

SKU: SEFG471   Download PDF

Select a Variant:
  • SEFG471 - Compact Safety Light Curtain with User-Friendly Configuration
Qty:
Now $2,944.00   Web pricing policy
BEFORE   $0.00 Now $2,944.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience seamless integration with our versatile safety light curtain, expertly designed with an innovative mounting system and a space-saving housing The emitter and receiver alignment is a breeze, guided by a visible red light indicator and a signal strength display Utilizing the intuitive wTeach2 software, users can effortlessly adjust settings and perform diagnostics through the IO-Link interface.

Settings can be conveniently saved to a microSD card for quick duplication to other units With a range of comprehensive muting functions, this safety solution is tailored to efficiently manage the movement of objects into and out of hazardous areas.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Optical Data Range 0.25 ... 7 m
 Housing Length (L) 258 mm
 Safety Field Height (SFH) 159 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 9 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current < 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Safety-relevant Data ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEFX001 mounting
 Function Finger Protection yes
 Output IO-Link yes
