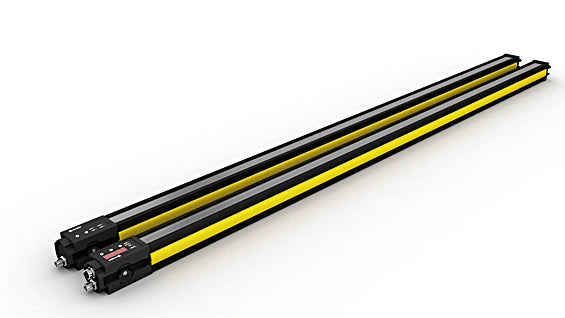

SEFG458 - Compact Safety Light Curtain with User-Friendly Setup and Display

SKU: SKU: SEFG458 Download PDF

Select a Variant:

SEFG458 - Compact Safety Light Curtain with User-Friendly Setup and Display

SET THE QTY:

Now $5,074.00 Web pricing policy

~~BEFORE $0.00~~ Now $5,074.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your safety system with this innovative safety light curtain, designed for seamless integration thanks to its effective mounting technology and compact form factor The emitter and receiver alignment is made straightforward with the help of visible red light indicators and a signal strength display Utilizing the intuitive wTeach2 software, configuration and diagnostics via the IO-Link interface are a breeze.

Additionally, you can easily save your settings to a microSD card for quick replication on other devices The extensive muting capabilities ensure it's an optimal choice for safely managing object transport in and out of hazardous areas.

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Higher levels of safety and availability thanks to intelligent muting functions.

•Multifunctional thanks to measuring function.

•Quick duplication of settings via microSD memory card.

Specifications:

Range	0.25 ... 20 m
Housing Length (L)	1,310 mm
Safety Field Height (SFH)	1,211 mm
Resolution	30 mm
Light Source	Red Light
Wavelength	630 nm
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Set
Supply Voltage	19.2 ... 28.8 V DC
Response Time	14.4 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	< 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65/IP67
ESPE Type (EN 61496)	4
Performance Level (EN ISO 13849-1)	Cat. 4 PL e
PFHD	≤ 1.8 × 10-8
Mission Time TM (EN ISO 13849-1)	20 a
Safety Integrity Level (EN 61508)	SIL3
Safety Integrity Level (EN 62061)	SILCL3
Scope of delivery	ZEFX001 mounting
Scope of delivery (Emitter; Receiver)	SEFG518; SEFG658
Function Hand Protection	yes
Scope of functions	Muting
Output IO-Link	yes
