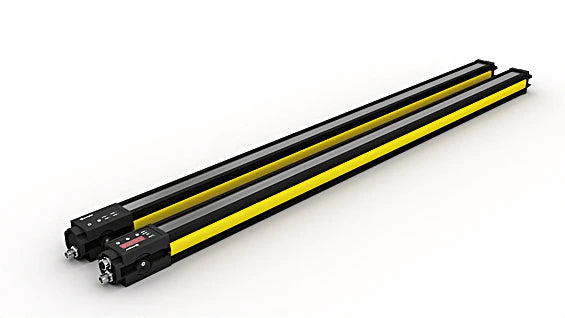

SEFG456 - Compact Safety Light Curtain with Easy Settings & Red Alignment Light

SEFG456 - Compact Safety Light Curtain with Easy Settings & Red Alignment Light

SKU: SEFG456   Download PDF

Select a Variant:
  • SEFG456 - Compact Safety Light Curtain with Easy Settings & Red Alignment Light
Qty:
Now $4,492.00   Web pricing policy
BEFORE   $0.00 Now $4,492.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance your safety measures with this adaptable light curtain, engineered for easy integration into various systems Its compact design and innovative mounting technology offer flexibility in installation The alignment process for the emitter and receiver is made simple with visible red light indicators and a signal strength display With the intuitive wTeach2 software, configuring settings and diagnostics through the IO-Link interface is a breeze.

You can conveniently save configurations to a microSD card, allowing for quick replication across multiple units Moreover, the comprehensive muting functions provide tailored solutions, ensuring safe object transport in and out of hazardous areas.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Range 0.25 ... 20 m
 Housing Length (L) 1,009 mm
 Safety Field Height (SFH) 910 mm
 Resolution 30 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 12.6 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current < 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65 IP67
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEFX001 mounting
 Function Hand Protection yes
 Output IO-Link yes
