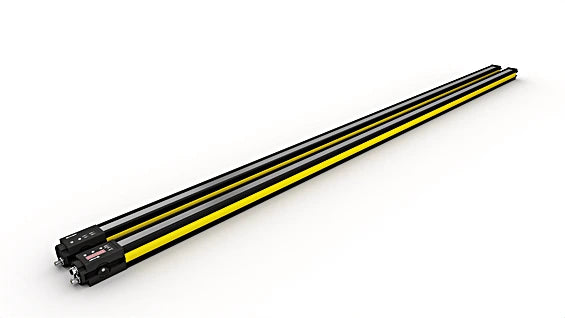

SEFG442 - Compact Safety Light Curtain with Smart Integration Features

SKU: SKU: SEFG442 Download PDF

Variant:

SEFG442 - Compact Safety Light Curtain with Smart Integration Features

Now $10,145.00

~~BEFORE $0.00~~ Now $10,145.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience versatility and safety with this advanced safety light curtain, engineered for seamless integration into various systems Its intelligent mounting technology combined with a compact design allows for easy installation The visible red light aids in the straightforward alignment of both the emitter and receiver, complemented by a convenient signal strength display Utilizing the intuitive wTeach2 software, configuration and diagnostics are a breeze via the IO-Link interface.

Additionally, settings can be conveniently saved onto a microSD card for quick replication across multiple units With comprehensive blanking and muting features, this light curtain provides an effective solution for securely managing the transport of objects in and out of hazardous zones.

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Higher levels of safety and availability thanks to intelligent muting functions.

•Multifunctional thanks to measuring function.

•Quick duplication of settings via microSD memory card.

Specifications:

Range	0.25 ... 7 m
Housing Length (L)	1,911 mm
Safety Field Height (SFH)	1,812 mm
Resolution	14 mm
Light Source	Red Light
Wavelength	630 nm
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Set
Supply Voltage	19.2 ... 28.8 V DC
Response Time	28.8 ms
Response time (special)	42.7 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	< 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Safety-relevant Data	{'ESPE Type (EN 61496)': '4', 'Performance Level (EN ISO 13849-1)': 'Cat. 4 PL e', 'PFHD': '≤ 1.8 × 10-8', 'Mission Time TM (EN ISO 13849-1)': '20 a', 'Safety Integrity Level (EN 61508)': 'SIL3', 'Safety Integrity Level (EN 62061)': 'SILCL3'}
Scope of delivery	ZEFX001 mounting
Function Finger Protection	yes
Scope of functions	Muting and blanking
Output IO-Link	yes
