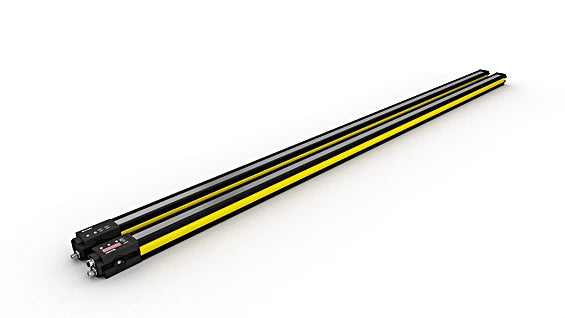

SEFG441 - Compact Safety Light Curtain with User-Friendly IO-Link Setup

SKU: SKU: SEFG441 Download PDF

Select a Variant:

SEFG441 - Compact Safety Light Curtain with User-Friendly IO-Link Setup

SET THE QTY:

Now $9,547.00 Web pricing policy

~~BEFORE $0.00~~ Now $9,547.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Ensure safety in your workspace with this versatile light curtain Its compact design and advanced mounting technology enable easy integration into various systems The emitter and receiver alignment is straightforward, thanks to a visible red light and a convenient signal strength indicator Users will appreciate the intuitive wTeach2 software, which allows for simple configuration and diagnostics through the IO-Link interface.

Settings can be conveniently saved on a microSD card for quick replication across multiple devices With extensive blanking and muting capabilities, this solution is tailored for securely managing the movement of objects in and out of hazardous areas .

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Higher levels of safety and availability thanks to intelligent muting functions.

•Multifunctional thanks to measuring function.

•Quick duplication of settings via microSD memory card.

Specifications:

Range	0.25 ... 7 m
Housing Length (L)	1,760 mm
Safety Field Height (SFH)	1,662 mm
Resolution	14 mm
Light Source	Red Light
Wavelength	630 nm
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Set
Supply Voltage	19.2 ... 28.8 V DC
Response Time	27 ms
Response time (special)	40 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	< 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
ESPE Type (EN 61496)	4
Performance Level (EN ISO 13849-1)	Cat. 4 PL e
PFHD	≤ 1.8 × 10-8
Mission Time TM (EN ISO 13849-1)	20 a
Safety Integrity Level (EN 61508)	SIL3
Safety Integrity Level (EN 62061)	SILCL3
Scope of delivery	ZEFX001 mounting
Function Finger Protection	yes
Scope of functions	Muting and blanking
Output IO-Link	yes
