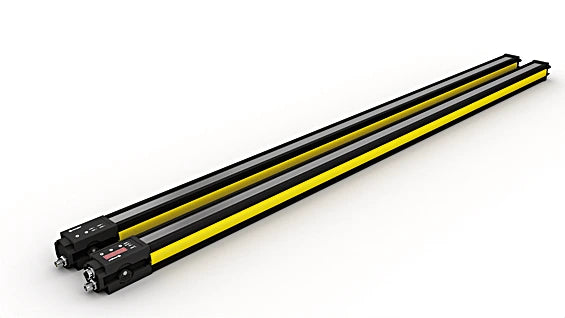

SEFG438 - Compact Safety Light Curtain with IO-Link and Red Alignment Light

SEFG438 - Compact Safety Light Curtain with IO-Link and Red Alignment Light

SKU: SEFG438 Download PDF

Variant:
  • SEFG438 - Compact Safety Light Curtain with IO-Link and Red Alignment Light
Now $7,609.00
BEFORE   $0.00 Now $7,609.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Integrate safety into your operations with this innovative light curtain, which boasts a compact design and adaptable mounting technology The alignment process is enhanced by a visible red beam and a signal strength indicator, making setup straightforward Effortlessly manage settings and diagnostics using the user-friendly wTeach2 software via the IO-Link interface You can save configurations to a microSD card for quick replication across multiple units.

Additionally, the comprehensive blanking and muting capabilities provide tailored solutions, ensuring the secure transport of items in and out of hazardous zones.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Optical Data Range 0.25 ... 7 m
 Housing Length (L) 1,310 mm
 Safety Field Height (SFH) 1,211 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Max. Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Electrical Data Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 21.6 ms
 Response time (special) 31.9 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current < 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Mechanical Data Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 Safety-relevant Data ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 General Data Scope of delivery ZEFX001 mounting
 Function Finger Protection yes
 Scope of functions Muting and blanking
 Output IO-Link yes
