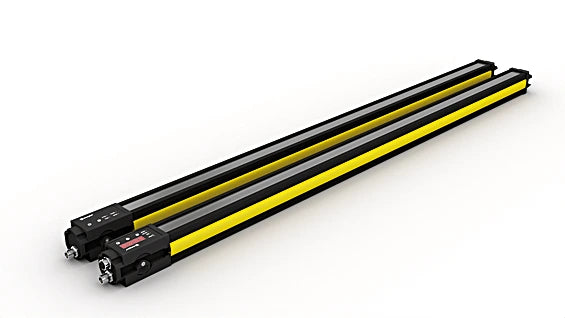

SEFG436 - Compact Safety Light Curtain with IO-Link Integration

SKU: SKU: SEFG436 Download PDF

Select a Variant:

SEFG436 - Compact Safety Light Curtain with IO-Link Integration

SET THE QTY:

Now $6,661.00 Web pricing policy

~~BEFORE $0.00~~ Now $6,661.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your safety measures with this versatile light curtain, featuring an innovative mounting system and a compact design that allows for seamless integration into various setups The emitter and receiver alignment is made easier with a visible red light and a helpful signal strength indicator Thanks to the intuitive wTeach2 software, configuring settings and diagnostics via the IO-Link interface is straightforward.

You can effortlessly save configurations to a microSD card for quick duplication across multiple units With comprehensive blanking and muting features, this product is tailored to meet diverse applications, ensuring safe transport of items in and out of hazardous areas.

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Higher levels of safety and availability thanks to intelligent muting functions.

•Multifunctional thanks to measuring function.

•Quick duplication of settings via microSD memory card.

Specifications:

Optical Data - Range	0.25 ... 7 m
Housing Length (L)	1,009 mm
Safety Field Height (SFH)	910 mm
Resolution	14 mm
Light Source	Red Light
Wavelength	630 nm
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Electrical Data - Sensor Type	Set
Supply Voltage	19.2 ... 28.8 V DC
Response Time	18 ms
Response time (special)	26.5 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	< 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Mechanical Data - Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Safety-relevant Data - ESPE Type (EN 61496)	4
Performance Level (EN ISO 13849-1)	Cat. 4 PL e
PFHD	≤ 1.8 × 10-8
Mission Time TM (EN ISO 13849-1)	20 a
Safety Integrity Level (EN 61508)	SIL3
Safety Integrity Level (EN 62061)	SILCL3
General Data - Scope of delivery	ZEFX001 mounting
Scope of delivery (Emitter; Receiver)	SEFG536; SEFG636
Function Finger Protection	yes
Scope of functions	Muting and blanking
Output IO-Link	yes
