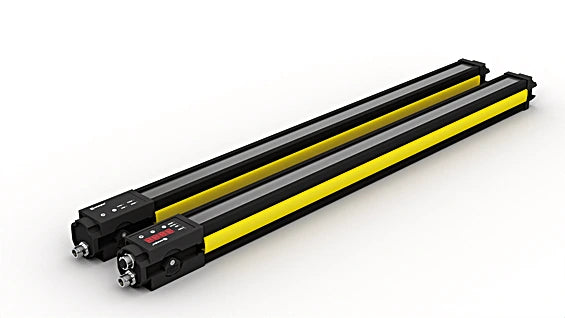

SEFG434 - Compact Safety Light Curtain with Easy Configuration Features

SEFG434 - Compact Safety Light Curtain with Easy Configuration Features

SKU: SEFG434   Download PDF

Select a Variant:
  • SEFG434 - Compact Safety Light Curtain with Easy Configuration Features
Qty:
Now $5,329.00   Web pricing policy
BEFORE   $0.00 Now $5,329.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance safety in your workspace with this versatile safety light curtain, designed for easy integration into various systems thanks to its innovative mounting technology and compact design The alignment process for the emitter and receiver is straightforward, aided by a visible red light and a signal strength indicator With the user-friendly wTeach2 software, configuring settings and diagnosing issues via the IO-Link interface is seamless.

Additionally, you can save configurations to a microSD card for quick application on other devices Equipped with comprehensive blanking and muting features, this safety light curtain provides the perfect solution for securely moving items in and out of danger zones.

Features and Benefits:

    •Simple configuration and diagnosis with wTeach2 software.

    •Higher levels of safety and availability thanks to intelligent muting functions.

    •Multifunctional thanks to measuring function.

    •Quick duplication of settings via microSD memory card.

Specifications:

 Range 0.25 ... 7 m
 Housing Length (L) 709 mm
 Safety Field Height (SFH) 610 mm
 Resolution 14 mm
 Light Source Red Light
 Wavelength 630 nm
 Max Ambient Light 10,000 Lux
 Opening Angle ± 2.5 °
 Sensor Type Set
 Supply Voltage 19.2 ... 28.8 V DC
 Response Time 14.4 ms
 Response time (special) 21.1 ms
 Temperature Range -30 ... 55 °C
 Storage temperature -30 ... 70 °C
 Number of safety outputs (OSSDs) 2
 Safety Output Voltage Drop ≤ 2.3 V
 PNP Safety Output / Switching Current ≤ 300 mA
 Number of Signal Outputs 1
 Signal Output Voltage Drop < 2.5 V
 Signal Output / Switching Current < 100 mA
 Short Circuit Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PC
 Degree of Protection IP65, IP67
 ESPE Type (EN 61496) 4
 Performance Level (EN ISO 13849-1) Cat. 4 PL e
 PFHD ≤ 1.8 × 10-8
 Mission Time TM (EN ISO 13849-1) 20 a
 Safety Integrity Level (EN 61508) SIL3
 Safety Integrity Level (EN 62061) SILCL3
 Scope of delivery ZEFX001 mounting
 Scope of delivery (Emitter; Receiver) SEFG534; SEFG634
 Function Finger Protection yes
 Scope of functions Muting and blanking
 Output IO-Link yes
