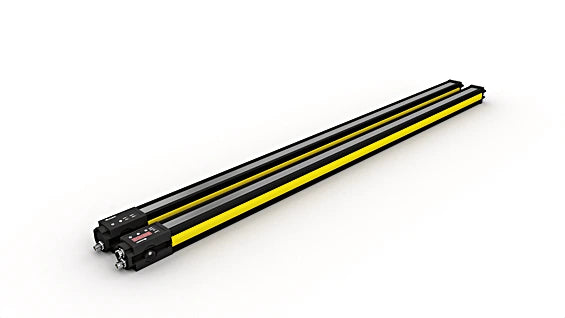

SEFG417 - Compact Safety Light Curtain with Easy Alignment and IO-Link Integration

SKU: SKU: SEFG417 Download PDF

Select a Variant:

SEFG417 - Compact Safety Light Curtain with Easy Alignment and IO-Link Integration

SET THE QTY:

Now $5,163.00 Web pricing policy

~~BEFORE $0.00~~ Now $5,163.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

The safety light curtain is expertly designed for seamless integration into various systems, featuring an innovative mounting technology and a compact housing With a visible red light and signal strength display, aligning the emitter and receiver is straightforward The intuitive wTeach2 software simplifies configuration and diagnostics through the IO-Link interface, allowing settings to be easily saved to a microSD card for quick replication across multiple devices.

Its comprehensive blanking and muting options cater to a range of applications, ensuring safe transport of objects into and out of hazardous areas.

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Higher levels of safety and availability thanks to intelligent muting functions.

•Multifunctional thanks to measuring function.

•Quick duplication of settings via microSD memory card.

Specifications:

Range	0.25 ... 20 m
Housing Length (L)	1,160 mm
Safety Field Height (SFH)	1,061 mm
Resolution	30 mm
Light Source	Red Light
Wavelength	630 nm
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Set
Supply Voltage	19.2 ... 28.8 V DC
Response Time	13.6 ms
Response time (special)	19.9 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	< 2.5 V
Signal Output / Switching Current	< 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Safety-relevant Data	{'ESPE Type (EN 61496)': 4, 'Performance Level (EN ISO 13849-1)': 'Cat. 4 PL e', 'PFHD': '≤ 1.8 × 10-8', 'Mission Time TM (EN ISO 13849-1)': '20 a', 'Safety Integrity Level (EN 61508)': 'SIL3', 'Safety Integrity Level (EN 62061)': 'SILCL3'}
General Data	{'Scope of delivery': 'ZEFX001 mounting', 'Scope of delivery (Emitter; Receiver)': 'SEFG517; SEFG617', 'Function Hand Protection': 'yes', 'Scope of functions': 'Muting and blanking', 'Output IO-Link': 'yes'}
