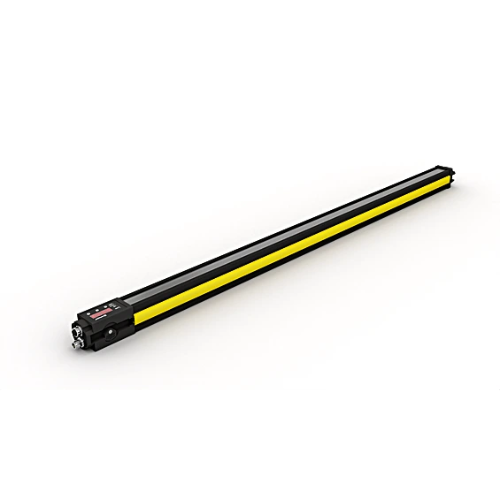

SEFB624 - Versatile Safety Light Array with Red Signal and Mounting Bracket

SKU: SKU: SEFB624 Download PDF

Variant:

SEFB624 - Versatile Safety Light Array with Red Signal and Mounting Bracket

Now $1,238.00

~~BEFORE $0.00~~ Now $1,238.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your setup with this versatile multi-light array, which can be easily mounted anywhere using the T slot and accompanying bracket Featuring a visible red light alongside a signal strength indicator, aligning the emitter with the receiver is a breeze Built-in safety features such as safety mode, restart inhibit, and contactor monitoring come standard to ensure reliability For effortless configuration, utilize the intuitive IO-Link and wenglor software wTeach2.

Additionally, optional LED indicators are available to display switch statuses or alert you to any errors.

Features and Benefits:

•Simple configuration and diagnosis with wTeach2 software.

•Multifunctional thanks to measuring function.

•Quick alignment through visible red light.

•Body Protection.

Specifications:

Optical Data Range	0.5 ... 50 m
Beam Distance	300 mm
Number of Beams	4
Light Source	Red Light
Max. Ambient Light	10,000 Lux
Opening Angle	± 2.5 °
Sensor Type	Receiver
Supply Voltage	19.2 ... 28.8 V DC
Current Consumption (Ub = 24 V)	≤ 350 mA
Response Time	15 ms
Temperature Range	-30 ... 55 °C
Storage temperature	-30 ... 70 °C
Number of safety outputs (OSSDs)	2
Safety Output Voltage Drop	≤ 2.3 V
PNP Safety Output / Switching Current	≤ 300 mA
Number of Signal Outputs	1
Signal Output Voltage Drop	≤ 2.5 V
Signal Output / Switching Current	≤ 100 mA
Short Circuit Protection	yes
Overload Protection	yes
Reverse Polarity Protection	yes
Interface	IO-Link V1.1
Protection Class	III
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PC
Degree of Protection	IP65, IP67
Connection	M12 × 1
Safety-relevant Data ESPE Type (EN 61496)	4
Performance Level (EN ISO 13849-1)	Cat. 4 PL e
PFHD	≤ 1.8 × 10-8
Mission Time TM (EN ISO 13849-1)	20 a
Safety Integrity Level (EN 61508)	SIL3
Safety Integrity Level (EN 62061)	SILCL3
Function Body Protection	yes
Scope of functions	Basic function
Output IO-Link	yes
