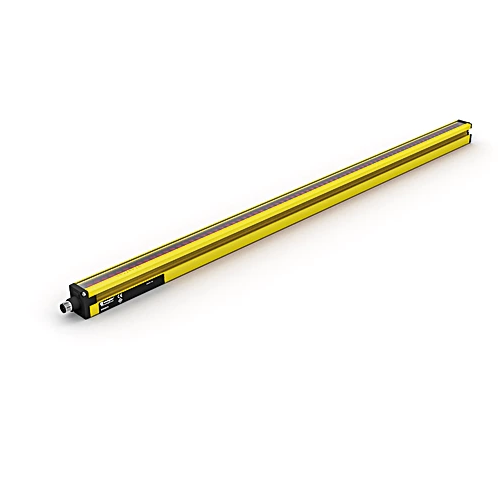

    SEFB622 - Versatile Multi-Light Safety Array with Easy Alignment Features

    SEFB622 - Versatile Multi-Light Safety Array with Easy Alignment Features

    SKU: SEFB622   Download PDF

    Select a Variant:
    • SEFB622 - Versatile Multi-Light Safety Array with Easy Alignment Features
    Qty:
    Now $983.00   Web pricing policy
    BEFORE   $0.00 Now $983.00 Web pricing policy
    Sold out
    Shipping calculated at checkout.
    IN STOCK
    Shipping Available
    Free shipping on orders above $1000. *Wires and cables only.
    View full details
    Product Information Resources Reviews
    Product Information

    Description:

    Versatile and adaptable, this multi-light array can be effortlessly mounted in any location using the T slot and included bracket The emitter and receiver are easily aligned thanks to the bright red light and clear signal strength display It also features essential safety functions, such as safety mode, restart inhibit, and contactor monitoring Users can customize the protective setup with the intuitive IO-Link and wenglor software, wTeach2.

    Optional LED indicators provide a visual reference for switch statuses and error alerts Key highlights include user-friendly configuration and diagnostics with wTeach2, multifunctional measurement abilities, and quick setup facilitated by the visible red light.

    Features and Benefits:

      •Simple configuration and diagnosis with wTeach2 software.

      •Multifunctional thanks to measuring function.

      •Quick alignment through visible red light.

    Specifications:

     Range 0.5 ... 50 m
     Beam Distance 500 mm
     Number of Beams 2
     Light Source Red Light
     Max. Ambient Light 10,000 Lux
     Opening Angle ± 2.5 °
     Sensor Type Receiver
     Supply Voltage 19.2 ... 28.8 V DC
     Current Consumption (Ub = 24 V) ≤ 350 mA
     Response Time 15 ms
     Temperature Range -30 ... 55 °C
     Storage temperature -30 ... 70 °C
     Number of safety outputs (OSSDs) 2
     Safety Output Voltage Drop ≤ 2.3 V
     PNP Safety Output / Switching Current ≤ 300 mA
     Number of Signal Outputs 1
     Signal Output Voltage Drop ≤ 2.5 V
     Signal Output / Switching Current ≤ 100 mA
     Short Circuit Protection yes
     Overload Protection yes
     Reverse Polarity Protection yes
     Interface IO-Link V1.1
     Protection Class III
     Housing Material Aluminum, anodised
     Optic Cover Plastic, PC
     Degree of Protection IP65, IP67
     Connection M12 × 1
     ESPE Type (EN 61496) 4
     Performance Level (EN ISO 13849-1) Cat. 4 PL e
     PFHD ≤ 1.8 × 10-8
     Mission Time TM (EN ISO 13849-1) 20 a
     Safety Integrity Level (EN 61508) SIL3
     Safety Integrity Level (EN 62061) SILCL3
     Function Body Protection yes
     Scope of functions Basic function
     Output IO-Link yes
