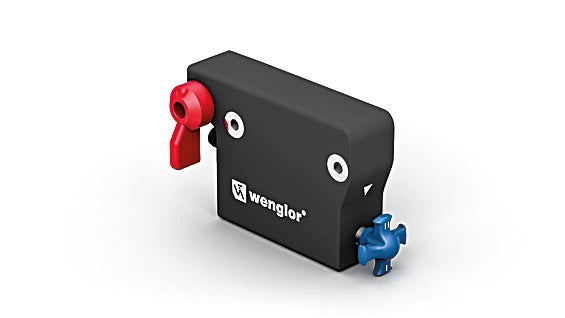

S2FP002 - High Force Electromechanical Guard Locking Device, 1150 N Strength

S2FP002 - High Force Electromechanical Guard Locking Device, 1150 N Strength

SKU: S2FP002 Download PDF

Variant:
  • S2FP002 - High Force Electromechanical Guard Locking Device, 1150 N Strength
Now $495.00
BEFORE   $0.00 Now $495.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience advanced safety and reliability with this electromechanical guard locking device, which provides an impressive locking force of 1150 N that is consistently monitored It meets the Cat 4 PL e safety standard (EN ISO 13849-1) with just one unit required Even in a series connection, the safety level, reaction time, and risk time remain stable The device also includes comprehensive diagnostic features that boost system reliability while making installation and maintenance straightforward.

Its innovative star handle design is ideal for both rotary and sliding doors, enhancing usability.

Features and Benefits:

    •Escape release.

    •Performance Level: Cat. 4 PL e.

    •Power to unlock principle.

    •Continuously monitored locking force of 1150 N.

Specifications:

 Supply Voltage 20.4 ... 26.4 V DC
 Response Time ≤ 100 ms
 Risk time ≤ 200 ms
 Temperature Range 0 ... 60 °C
 Storage temperature -10 ... 90 °C
 Safety Output OSSD
 Number of safety outputs (OSSDs) 2 PNP
 Safety Output / Switching Current 250 mA
 Number of Signal Outputs 1 PNP
 Signal output switching current 50 mA
 Short Circuit Protection yes
 Protection Class III
 Housing Material Plastic
 Degree of Protection IP67, IP66, IP69
 Connection M12 × 1; 8-pin
 Latching Force, typical 25 / 50 N
 Operating principle RFID
 Coding Standard
 Performance Level (EN ISO 13849-1) Cat. 4 PL e *
 PFHD 5,20 × E-10 1/h *
 Safety Integrity Level (EN 61508) SIL3*
 Safety Integrity Level (EN 62061) SILCL3*
 PDDB (EN 60947-5-3) yes
 Locking Force F (Zh) 1,150 N
 Function Series Connection yes
 Monitored lock yes
 Mechanical Detent Mechanism yes
 Detent Mechanism yes
 Auxiliary release yes
 Emergency release yes
