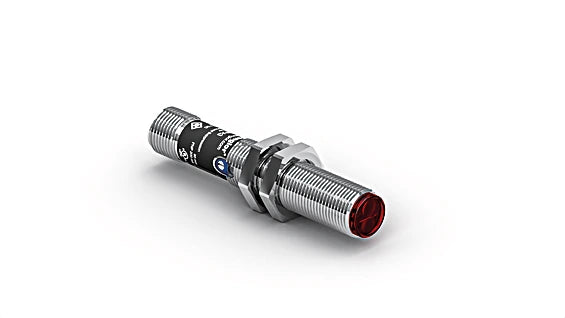

RO88PD3 - Industrial Universal Retro-Reflex Sensor for Reflectors

RO88PD3 - Industrial Universal Retro-Reflex Sensor for Reflectors

SKU: RO88PD3   Download PDF

Select a Variant:
  • RO88PD3 - Industrial Universal Retro-Reflex Sensor for Reflectors
Qty:
Now $162.00   Web pricing policy
BEFORE   $0.00 Now $162.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Ensure effective operation with these sensors, which require a reflector for optimal functionality They are adaptable and can be used across various industrial settings, thanks to their robust performance capabilities.

Features and Benefits:

    •Compact housing.

    •Red light.

    •Optical Data.

    •Switching Hysteresis < 15 %.

    •Light Source Red Light.

    •Polarization Filter yes.

    •Service Life (T = +25 °C) 100,000 h.

    •Max. Ambient Light 10,000 Lux.

    •Opening Angle 8 °.

    •Two-Lens Optic yes.

    •Electrical Data Supply Voltage 10 ... 30 V DC.

    •Current Consumption (Ub = 24 V) < 40 mA.

    •Switching Frequency 500 Hz.

    •Response Time 1 ms.

    •Short Circuit Protection yes.

    •Reverse Polarity Protection yes.

    •Overload Protection yes.

    •Protection Class III.

    •Degree of Protection IP65.

Specifications:

 Range 2,500 mm
 Reference Reflector/Reflector Foil RQ100BA
 Temperature Drift < 10 %
 Temperature Range -10 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 Switching Output/Switching Current 200 mA
 Residual Current Switching Output < 50 µA
 Setting Method Potentiometer
 Housing Material Brass, nickel-plated
 Full Encapsulation yes
 Connection M12 × 1; 4-pin
