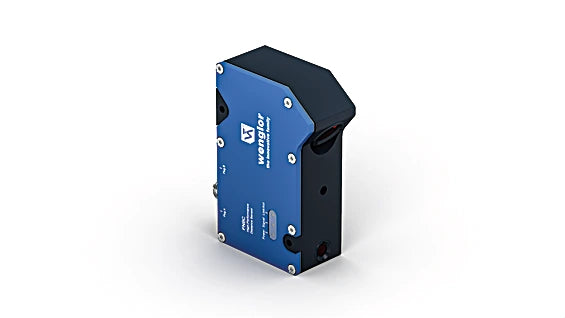

PNBC004 - High-Precision Laser Distance Sensor with 16-Bit Resolution

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PNBC Laser Distance Sensors, designed with advanced triangulation technology utilizing a high-resolution CMOS line array These sensors accurately measure distance by calculating angles, delivering exceptional precision with 16-bit resolution, thanks to superior optics They excel in providing stable readings even on intricate surfaces, such as sheet metal that displays speckle effects.

With a maximum linearity deviation as low as 005%, the sensors offer impressive accuracy and require a brief warm-up period due to reduced temperature drift Data can be accessed instantly through both analog output and the interface, while up to four switching outputs can be externally configured Additionally, an incremental encoder input enhances the versatility of these sensors.

Features and Benefits:

•Highly precise measurement with a maximum linearity deviation of 0.05%.

•Constant, surface-independent measured values.

•Thermally stable measured values without any warm-up phase.

•Industry 4.0 compatible thanks to Industrial Ethernet.

Specifications:
