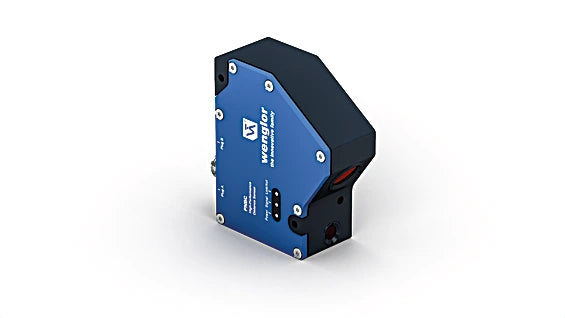

PNBC003 - High Precision Laser Distance Sensor with 16-bit Resolution

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PNBC Laser Distance Sensor Triangulation Sensors, engineered for precision measurement utilizing a high-resolution CMOS line array to determine object distances through angular measurement Featuring top-tier optics, these sensors deliver remarkable 16-bit resolution, ensuring highly accurate readings Thanks to advanced algorithms, even challenging surfaces—such as sheet metal exhibiting a speckle effect—yield consistent and stable results.

The sensors boast exceptional accuracy, maintaining a maximum linearity deviation of only 005%, while minimal temperature drift allows for a brief warm-up phase Outputs can be monitored simultaneously through both analog output and digital interface, with the flexibility to program up to four external switching outputs Additionally, an incremental encoder input enhances the functionality of this versatile device.

Features and Benefits:

•Highly precise measurement with a maximum linearity deviation of 0.05%.

•Constant, surface-independent measured values.

•Thermally stable measured values without any warm-up phase.

•Industry 4.0 compatible thanks to Industrial Ethernet.

Specifications:
