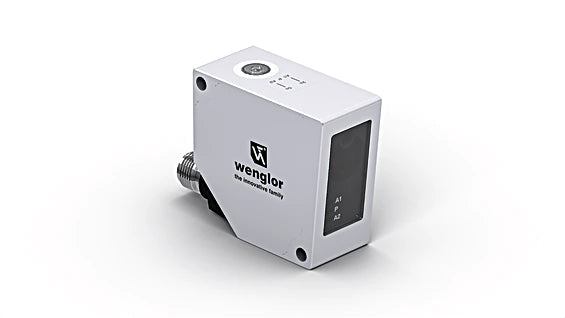

P2PY101 - 10m Laser Distance Sensor with Dynamic Sensitivity Technology

P2PY101 - 10m Laser Distance Sensor with Dynamic Sensitivity Technology

SKU: P2PY101   Download PDF

Select a Variant:
  • P2PY101 - 10m Laser Distance Sensor with Dynamic Sensitivity Technology
Qty:
Now $868.00   Web pricing policy
BEFORE   $0.00 Now $868.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience precision with these advanced sensors designed on transit time measurement principles utilizing laser class 1 technology The Wintec sensors are equipped with Dynamic Sensitivity (DS) technology, allowing them to pinpoint extremely weak signals, boasting a functional range of up to 10 meters These devices reliably detect both dark and shiny surfaces even from sharp angles, making them effective in challenging conditions including low light and environmental contaminants.

Crafted from sturdy 316L stainless steel (14404/V4A), the housing offers excellent resistance against oils, coolants, and various cleaning agents, ensuring durability in diverse conditions.

Features and Benefits:

    •2 mutually independent switching outputs.

    •Robust stainless steel housing with IP69K protection.

    •Wide working range and precise detection using DS technology.

    •No interactive influence.

Specifications:

 Working Range 0 ... 10,000 mm
 Setting Range 50 ... 10,000 mm
 Reproducibility maximum 3 mm
 Linearity Deviation 10 mm
 Switching Hysteresis < 15 mm
 Light Source Laser (red)
 Wavelength 660 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Beam Divergence < 2 mrad
 Max. Ambient Light 100,000 Lux
 Reflector required no
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 35 mA
 Switching Frequency 50 Hz
 Switching Frequency (max.) 250 Hz
 Response Time 15 ms
 Response Time (min.) 4.7 ms
 Temperature Drift < 0.4 mm/K
 Temperature Range -40 ... 55 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 IO-Link transmission speed COM3
 Protection Class III
 FDA Accession Number 2110079-001
 Setting Method Teach-In
 Housing Material Stainless steel, V4A (1.4404 / 316L)
 Optic Cover Plastic, PMMA
 Degree of Protection IP68, IP69K
 Connection M12 × 1; 5-pin
 Ecolab yes
 FDA compliant yes
 MTTFd (EN ISO 13849-1) 543.71 a
 Output PNP NO yes
 IO-Link yes
 Acceleration sensor yes
 Adjustable parameters Output, Error Output
 Circuit NC, NC/NO, NO
