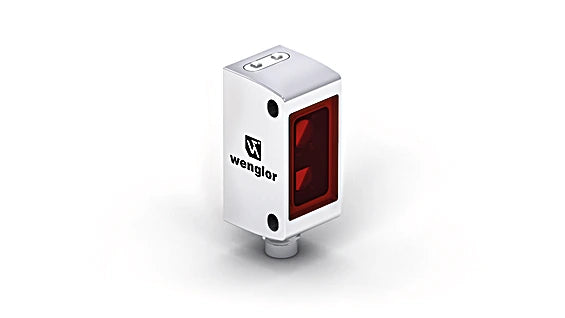

P2KH008 - Reliable Reflex Sensor with Laser Detection & IO-Link Interface

P2KH008 - Reliable Reflex Sensor with Laser Detection & IO-Link Interface

SKU: P2KH008   Download PDF

Select a Variant:
  • P2KH008 - Reliable Reflex Sensor with Laser Detection & IO-Link Interface
Qty:
Now $331.00   Web pricing policy
BEFORE   $0.00 Now $331.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing an advanced reflex sensor featuring background suppression technology that utilizes laser light and angle measurement principles for accurate detection of objects regardless of their background This sensor maintains a consistent switching distance, independent of the object's color, shape, or surface texture Capable of detecting components as small as 01 mm, it ensures precision in various applications.

Additionally, its IO-Link interface allows for easy configuration of settings such as PNP/NPN, NC/NO, and switching distance, while also providing real-time output of switching statuses and distance measurements Encased in a sturdy V4A (14404/316L) stainless steel housing, this sensor is highly resistant to oils, coolants, and cleaning agents, making it both robust and reliable in diverse environments.

Features and Benefits:

    •Condition monitoring.

    •Detect extremely small parts starting at 0.1 mm.

    •Laser class 1.

    •Robust stainless steel housing with IP69K.

Specifications:

 Optical Data Range 120 mm
 Setting Range 30 ... 120 mm
 Switching Hysteresis < 10 %
 Light Source Laser (red)
 Wavelength 680 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter see Table 1
 Electrical Data Supply Voltage 10 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 15 mA
 Switching Frequency 1,000 Hz
 Switching Frequency (interference-free mode) 500 Hz
 Response time (interference-free mode) 1 ms
 Response Time 0.5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 50 °C
 Switching Output Voltage Drop < 2 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.1
 Protection Class III
 FDA Accession Number 1710976-002
 Mechanical Data Setting Method Potentiometer
 Housing Material Stainless steel, V4A (1.4404 / 316L)
 Degree of Protection IP68 IP69K
 Connection M8 × 1; 3-pin
 Optic Cover Plastic, PMMA
 Ecolab yes
 Weight 42 g
 Safety-relevant Data MTTFd (EN ISO 13849-1) 1,629.22 a
 Output PNP NO yes
 IO-Link yes
 Adjustable parameters Output Push-pull NPN PNP
 Circuit NC NC/NO NO
 Other parameters Off-delay On-delay Mode of operation Hysteresis Switching point
 Emitted light All other parameters can be found in the product documentation.
