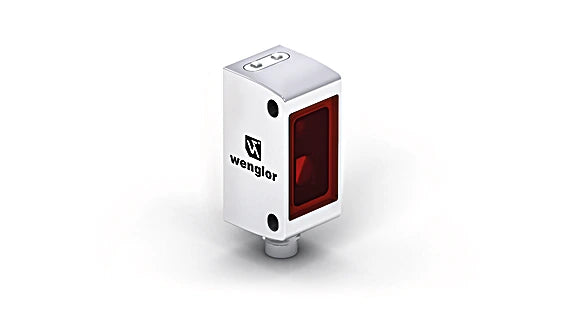

P2KH002 - Robust Reflex Sensor with IO-Link and Background Suppression

P2KH002 - Robust Reflex Sensor with IO-Link and Background Suppression

SKU: P2KH002   Download PDF

Select a Variant:
  • P2KH002 - Robust Reflex Sensor with IO-Link and Background Suppression
Qty:
Now $244.00   Web pricing policy
BEFORE   $0.00 Now $244.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the advanced reflex sensor with background suppression, utilizing red light technology based on angle measurement This sensor is engineered for precise object detection against a variety of backgrounds, ensuring a reliable switching distance regardless of the object's color, shape, or texture It is capable of detecting even the slightest height variations, facilitating accurate differentiation between parts.

Equipped with an IO-Link interface, this sensor allows for easy configuration options (PNP/NPN, NC/NO, switching distance) and sends outputs for status and distance measurements The unit is encased in a durable V4A (14404/316L) stainless steel housing, providing excellent resistance to oils, coolants, and cleaning solutions.

Features and Benefits:

    •Condition monitoring.

    •Low switching distance deviation for black/white.

    •Reliably detect objects against any background.

    •Robust stainless steel housing with IP69K.

Specifications:

 Range 150 mm
 Setting Range 30 ... 150 mm
 Switching Hysteresis < 10 %
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Current Consumption (Ub = 24 V) < 20 mA
 Switching Frequency 1,000 Hz
 Response time (interference-free mode) 1 ms
 Response Time 0.5 ms
 Temperature Drift < 5 %
 Temperature Range -40 ... 60 °C
 Switching Output Voltage Drop < 2 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Lockable yes
 Interface IO-Link V1.1
 Protection Class III
 Setting Method Potentiometer
 Housing Material Stainless steel, V4A (1.4404 / 316L)
 Degree of Protection IP68, IP69K
 Connection M8 × 1; 4-pin
 Optic Cover Plastic, PMMA
 Ecolab yes
 MTTFd (EN ISO 13849-1) 1,699.11 a
 Output PNP NC, PNP NO yes
 IO-Link yes
 Adjustable parameters Output Push-pull NPN PNP
 Circuit inactive
 Error output NC NC+NO NO
