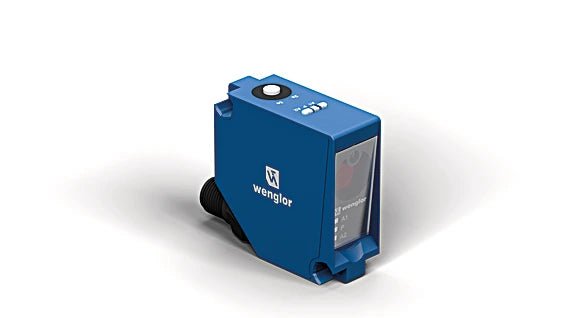

P1PY109 - 10m Laser Distance Sensor with Dynamic Sensitivity Technology

P1PY109 - 10m Laser Distance Sensor with Dynamic Sensitivity Technology

SKU: SKU: P1PY109 Download PDF

Variant:
  • P1PY109 - 10m Laser Distance Sensor with Dynamic Sensitivity Technology
Regular price Now $614.00
Regular price BEFORE   $0.00 Sale price Now $614.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience advanced performance with our sensors that utilize laser class 1 and the innovative transit time measurement principle Featuring Dynamic Sensitivity technology (DS), these sensors achieve exceptional reception sensitivity, enabling them to detect even the faintest signals With an impressive operational range of up to 10 meters, they are capable of identifying both dark and shiny objects from various extreme angles.

Additionally, these sensors excel in challenging environments, effectively overcoming issues related to ambient light or dirt Enhanced monitoring capabilities also facilitate predictive maintenance, ensuring seamless and reliable operation.

Features and Benefits:

    •Wide working range and precise detection thanks to DS technology.

    •No interactive influence.

    •Intuitive operating concept.

Specifications:

 Working Range 0 ... 10000 mm
 Setting Range 50 ... 10000 mm
 Reproducibility maximum 3 mm*
 Linearity Deviation 10 mm*
 Switching Hysteresis < 15 mm
 Light Source Laser (red)
 Wavelength 660 nm
 Service Life (T = +25 °C) 100000 h
 Laser Class (EN 60825-1) 1
 Beam Divergence < 2 mrad
 Max. Ambient Light 100000 Lux
 Light Spot Diameter see Table 1
 Reflector required no
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 35 mA
 Switching Frequency 50 Hz*
 Switching Frequency (max.) 250 Hz*
 Response Time 15 ms *
 Response Time (min.) 4.7 ms *
 Temperature Drift < 0.4 mm/K
 Temperature Range -40 ... 50 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 IO-Link transmission speed COM3
 Protection Class III
 FDA Accession Number 2110079-002
 Setting Method Teach-In
 Housing Material Plastic, ABS
 Optic Cover Plastic, PMMA
 Degree of Protection IP67, IP68
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 547.59 a
 Output PNP NC, PNP NO yes
 Adjustable parameters Output Error Output
 Warning output Circuit NC/NO, NC, NC+NO, NO
