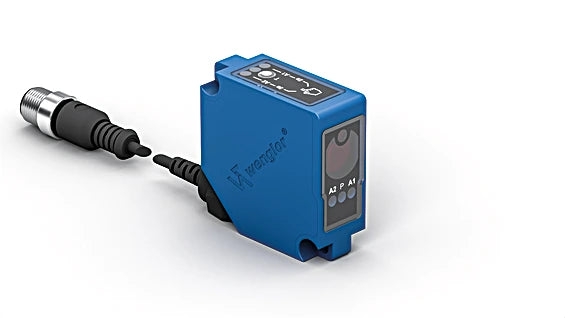

P1PY002 - Laser Distance Sensor with Scratch-Resistant Optics

P1PY002 - Laser Distance Sensor with Scratch-Resistant Optics

SKU: P1PY002 Download PDF

Variant:
  • P1PY002 - Laser Distance Sensor with Scratch-Resistant Optics
Now $544.00
BEFORE   $0.00 Now $544.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover cutting-edge sensor technology with these advanced units that boast scratch-resistant optics They offer the unique ability to deactivate their emitted light, enhancing functionality By employing the transit time measurement principle, these sensors provide precise distance measurements between themselves and objects With wenglor's innovative interference-free technology (wintec), multiple sensors can be installed in close proximity without any interference.

Enjoy high switching frequencies with the added confidence of laser class 1 safety, making them ideal for users.

Features and Benefits:

    •Secure detection of black objects in inclined positions using wintec.

    •No mutual interference with wintec.

    •Interference-free towards gloss backgrounds with wintec.

    •Reliable detection of glossy objects with wintec.

    •2 mutually independent switching outputs.

Specifications:

 Working Range 0 ... 3,000 mm
 Setting Range 200 ... 3,000 mm
 Switching Hysteresis < 15 mm
 Light Source Laser (red)
 Wavelength 660 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Beam Divergence < 2 mrad
 Max. Ambient Light 10,000 Lux
 Reflector required no
 Supply Voltage 10 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Switching Frequency 500 Hz
 Response Time 1 ms
 Temperature Drift (-10 °C < Tu < 50 °C) < 1 %
 Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 2.5 %
 Temperature Range -40 ... 60 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 FDA Accession Number 1910001-001
 Setting Method Teach-In
 Housing Material Plastic, ABS, PC
 Cable Jacket Material Plastic, PUR
 Optic Cover Plastic, PMMA
 Degree of Protection IP68
 Connection M12 × 1; 5-pin
 Cable Length 500 mm
 MTTFd (EN ISO 13849-1) 949.92 a
 Output PNP NO yes
 IO-Link yes
 Adjustable parameters Output NPN PNP
 Circuit NC NO
 Other parameters Off-delay On-delay Emitted light
