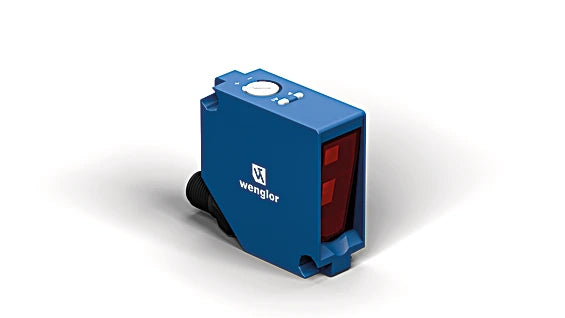

P1PL202 - High-Speed Retro-Reflect Sensor with IO-Link for Precision Detection

P1PL202 - High-Speed Retro-Reflect Sensor with IO-Link for Precision Detection

SKU: P1PL202 Download PDF

Variant:
  • P1PL202 - High-Speed Retro-Reflect Sensor with IO-Link for Precision Detection
Now $235.00
BEFORE   $0.00 Now $235.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your object detection capabilities with this efficient retro-reflex sensor, featuring a reliable red light and reflector system It excels at identifying items with reflective or glossy finishes even at high speeds Its impressive range makes it suitable for managing feed and presence controls, as well as for detecting objects on expansive feed belts The integrated IO-Link interface allows for easy configuration of retro-reflective barriers (PNP/NPN, NC/NO, and switching distances), and enables real-time monitoring of switching statuses and signal values.

Features and Benefits:

    •Also suitable for glossy and reflective objects.

    •Condition monitoring.

    •High switching frequency.

    •IO-Link 1.1.

    •Managing feed and presence controls.

    •Detecting objects on wide feed belts.

Specifications:

 Range 11,000 mm
 Reference Reflector/Reflector Foil RQ100BA
 Smallest Recognizable Part see Table 2
 Switching Hysteresis < 15 %
 Light Source Red Light
 Polarization Filter yes
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter see Table 1
 Two-Lens Optic yes
 Supply Voltage 10 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching Frequency 2,000 Hz
 Switching frequency (speed mode) 3,500 Hz
 Response Time 0.25 ms
 Response time (speed mode) 0.14 ms
 Temperature Drift < 10 %
 Temperature Range -40 ... 60 °C
 Switching Output Voltage Drop < 2 V
 Switching Output/Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/PC
 Degree of Protection IP67 IP68
 Connection M12 × 1; 4-pin
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 2,629.81 a
 Output IO-Link yes
 NPN NC, NPN NO yes
 Adjustable parameters Output Push-pull NPN PNP Circuit NC NC+NO NO
