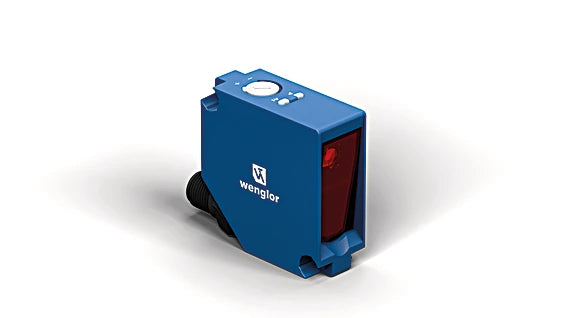

P1PK101 - Retro-Reflective Sensor for Transparent Objects with IO-Link Configurations

P1PK101 - Retro-Reflective Sensor for Transparent Objects with IO-Link Configurations

SKU: P1PK101 Download PDF

Variant:
  • P1PK101 - Retro-Reflective Sensor for Transparent Objects with IO-Link Configurations
Now $269.00
BEFORE   $0.00 Now $269.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience the power of advanced detection with our specialized retro-reflex sensor designed for transparent items Utilizing red light in conjunction with a reflector, this sensor excels where traditional systems struggle It effectively detects highly reflective objects such as glass, PET bottles, trays, and films Thanks to its single-lens optic, the sensor operates flawlessly without blind spots, making it capable of sensing items even through narrow openings.

The integrated IO-Link interface allows for easy configuration, enabling you to adjust settings such as PNP/NPN mode, NC/NO options, and switching distance, while also providing real-time information on switching states and signal values.

Features and Benefits:

    •Condition monitoring.

    •IO-Link 1.1.

    •No blind spot from single-lens optics.

    •Special for glass, PET and films.

Specifications:

 Range 2,600 mm
 Reference Reflector RQ100BA
 Clear Glass Recognition yes
 Smallest Recognizable Part see Table 2
 Switching Hysteresis < 5 %
 Light Source Red Light
 Polarization Filter yes
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter see Table 1
 Single-Lens Optic yes
 Supply Voltage 10 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching Frequency 2,000 Hz
 Switching frequency (speed mode) 3,500 Hz
 Response Time 0.25 ms
 Response time (speed mode) 0.14 ms
 Temperature Drift < 3 %
 Temperature Range -40 ... 60 °C
 Switching Output Voltage Drop < 2 V
 Switching Output/Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/PC
 Degree of Protection IP67, IP68
 Connection M12 × 1; 4-pin
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 2,394.2 a
 Output IO-Link yes
 PNP NC, PNP NO yes
 Adjustable parameters Output Push-pull
 Circuit NC, NO, inactive
 Error output NC+NO
 Other parameters Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
