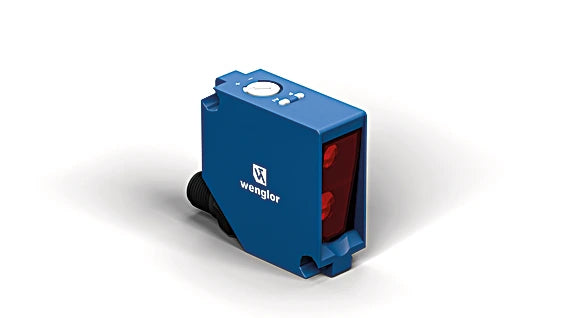

P1PH603 - Background Suppression Reflex Sensor with IO-Link Configuration

P1PH603 - Background Suppression Reflex Sensor with IO-Link Configuration

SKU: P1PH603   Download PDF

Select a Variant:
  • P1PH603 - Background Suppression Reflex Sensor with IO-Link Configuration
Qty:
Now $409.00   Web pricing policy
BEFORE   $0.00 Now $409.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing an advanced reflex sensor featuring background suppression technology, which utilizes red light for precise angle measurement This innovative device can detect objects against various backgrounds with remarkable accuracy It maintains consistent switching distances regardless of the object's color, shape, or surface texture, and is adept at differentiating even the slightest height variations.

The integrated IO-Link interface allows for easy customization of sensor settings, including PNP/NPN, NC/NO, and switching distance, while also providing real-time output for both switching statuses and distance measurements.

Features and Benefits:

    •Condition monitoring.

    •Low switching distance deviation for black/white.

    •IO-Link 1.1.

    •Reliably detect objects against any background.

Specifications:

 Optical Data Range 1,200 mm
 Setting Range 100 ... 1,200 mm
 Switching Hysteresis < 5 %
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Supply Voltage 15 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching Frequency 600 Hz
 Switching Frequency (interference-free mode) 400 Hz
 Response time (interference-free mode) 2 ms
 Response Time 1.5 ms
 Temperature Drift < 6 %
 Temperature Range -40 ... 60 °C
 Switching Output Voltage Drop < 2 V
 Switching Output / Switching Current 100 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/PC
 Degree of Protection IP67 IP68
 Connection M12 × 1; 4-pin
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 924.64 a
 Output PNP NC, PNP NO yes
 IO-Link yes
