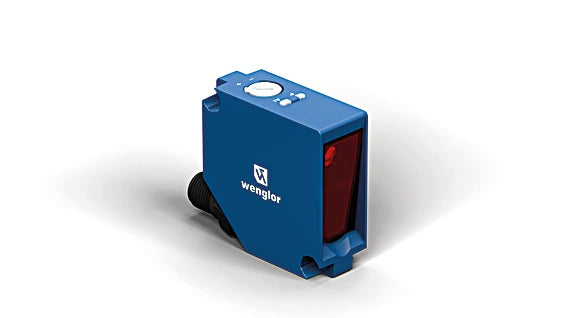

P1PE102 - High-Intensity Through-Beam Sensor with IO-Link Functionality

P1PE102 - High-Intensity Through-Beam Sensor with IO-Link Functionality

SKU: P1PE102   Download PDF

Select a Variant:
  • P1PE102 - High-Intensity Through-Beam Sensor with IO-Link Functionality
Qty:
Now $196.00   Web pricing policy
BEFORE   $0.00 Now $196.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

This through-beam sensor uses red light technology and comprises both a transmitter and a receiver Its robust light intensity ensures dependable operation even in challenging conditions like steam, fog, or dust You can easily test its functionality by using a dedicated input to turn off the transmitter Furthermore, the IO-Link interface allows users to customize various settings, including PNP/NPN configurations, NC/NO options, and switching distance, while also enabling the monitoring of switching statuses and signal values.

Features and Benefits:

    •Condition monitoring.

    •High light intensity with large switching reserve.

    •IO-Link 1.1.

    •Test input for high operational reliability.

Specifications:

 Optical Data Range 20,000 mm
 Smallest Recognizable Part see Table 1
 Switching Hysteresis 10 %
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Sensor Type Receiver
 Supply Voltage 10 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 25 mA
 Switching Frequency 1,000 Hz
 Switching Frequency (interference-free mode) 500 Hz
 Response Time 0.5 ms
 Response time (interference-free mode) 1 ms
 Temperature Drift < 10 %
 Temperature Range -40 ... 60 °C
 Switching Output Voltage Drop < 2 V
 Switching Output / Switching Current 100 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/PC
 Degree of Protection IP67, IP68
 Connection M12 × 1; 4-pin
 Optic Cover Plastic, PMMA
 MTTFd (EN ISO 13849-1) 1,566.77 a
 Output NPN NC, NPN NO yes
 IO-Link yes
 Adjustable parameters Output Push-pull
 Circuit inactive
 Error output NC, NC+NO, NO
 Other parameters Off-delay, On-delay, Mode of operation, Hysteresis, Switching point
