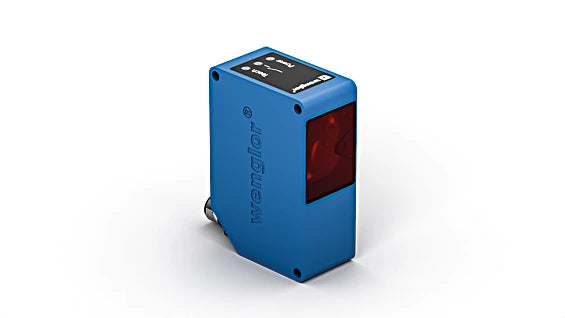

OY2TA403AT235 - High-Precision Laser Distance Sensor with Scratch-Resistant Optics

OY2TA403AT235 - High-Precision Laser Distance Sensor with Scratch-Resistant Optics

SKU: OY2TA403AT235 Download PDF

Variant:
  • OY2TA403AT235 - High-Precision Laser Distance Sensor with Scratch-Resistant Optics
Now $5.30
BEFORE   $0.00 Now $5.30
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing state-of-the-art distance sensors featuring durable, scratch-resistant optics These sensors utilize transit time measurement technology to accurately determine the distance between the sensor and objects With an impressive switching frequency, their performance remains unaffected by artificial light sources, such as energy-saving lamps, or varying backgrounds Notably, the operational range is effective even for dark surfaces, ensuring reliable functionality in diverse environments.

Features and Benefits:

    •Working range up to 4 m.

    •Scratch-resistant optic cover.

    •Very high switching frequency.

Specifications:

 Working Range 0 ... 4,000 mm
 Setting Range 250 ... 4,000 mm
 Switching Hysteresis < 25 mm
 Light Source Laser (red)
 Wavelength 660 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 2
 Beam Divergence < 2 mrad
 Max. Ambient Light 10,000 Lux
 Reflector required no
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 70 mA
 Switching Frequency 1,000 Hz
 Response Time 500 µs
 Temperature Drift < 2 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 FDA Accession Number 0820345-001
 Setting Method Teach-In
 Housing Material Plastic, ABS; Plastic, PC
 Optic Cover Plastic, PMMA
 Degree of Protection IP68
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 628.4 a
 Output PNP NC, PNP NO yes
