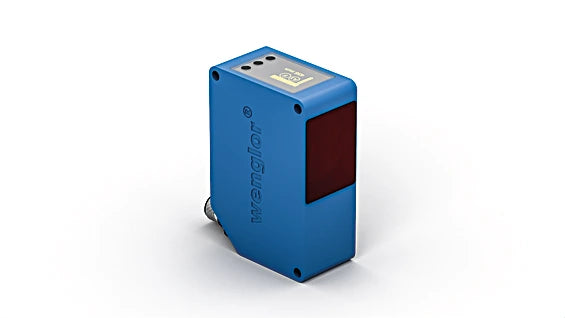

OY1TA603P0003 - Scratch-Resistant Laser Distance Sensor with Adjustable Light

OY1TA603P0003 - Scratch-Resistant Laser Distance Sensor with Adjustable Light

SKU: OY1TA603P0003 Download PDF

Variant:
  • OY1TA603P0003 - Scratch-Resistant Laser Distance Sensor with Adjustable Light
Now $713.00
BEFORE   $0.00 Now $713.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision measuring with these advanced sensors, featuring scratch-resistant optics The emitted light can easily be turned off, enhancing versatility Utilizing the transit time measurement principle, these sensors accurately determine the distance to objects, irrespective of their color, shape, or surface texture Even objects with darker hues are reliably detected, ensuring consistent performance across various environments.

Features and Benefits:

    •2 mutually independent switching outputs.

    •Graphical display for easy operation.

    •Switching output A1 as analog output switchable (0...10 V/4...20 mA).

    •Temperature drift eliminable.

Specifications:

 Working Range: 0.2 ... 6.2 m
 Measuring Range: 6 m
 Resolution: 1 ... 12 mm
 Linearity: 0.5 %
 Linearity Deviation: 30 mm
 Switching Hysteresis: 3 ... 20 mm
 Light Source: Laser (red)
 Wavelength: 660 nm
 Service Life (T = +25 °C): 100,000 h
 Laser Class (EN 60825-1): 1
 Max. Ambient Light: 10,000 Lux
 Beam Divergence: < 2 mrad
 Light Spot Diameter: see Table 1
 Reflector required: no
 Supply Voltage: 18 ... 30 V DC
 Current Consumption (Ub = 24 V): < 100 mA
 Switching Frequency: 50 Hz
 Measuring Rate: 1 ... 100 /s
 Response Time: 10 ... 200 ms
 On-/Off-Delay: 0 ... 10,000 ms
 Temperature Drift (-10 °C < Tu < 50 °C): < 0.2 mm/K
 Temperature Drift (Tu < -10 °C, Tu > 50 °C): < 0.4 mm/K
 Temperature Range: -25 ... 60 °C
 Number of Switching Outputs: 2
 Switching Output Voltage Drop: < 2.5 V
 Switching Output / Switching Current: 200 mA
 Analog Output: 0...10 V
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 FDA Accession Number: 0920381-000
 Setting Method: Menu (OLED)
 Housing Material: Plastic, ABS Plastic, PC
 Optic Cover: Plastic, PMMA
 Degree of Protection: IP68
 Connection: M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1): 346.68 a
 Output PNP NO: yes
 Adjustable parameters: Analog output 0...10 V 4...20 mA
 Output: Analog Output Push-pull NPN PNP
