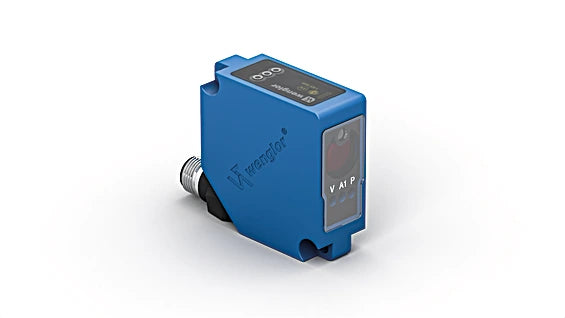

OY1P303P0189 - High-Frequency Laser Distance Sensor with Scratch-Resistant Optics

OY1P303P0189 - High-Frequency Laser Distance Sensor with Scratch-Resistant Optics

SKU: OY1P303P0189   Download PDF

Select a Variant:
  • OY1P303P0189 - High-Frequency Laser Distance Sensor with Scratch-Resistant Optics
Qty:
Now $10.00   Web pricing policy
BEFORE   $0.00 Now $10.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing advanced sensors equipped with scratch-resistant optics and the ability to disable emitted light Utilizing the transit time measurement principle, these sensors accurately gauge the distance between themselves and objects Featuring Wenglor's innovative interference-free technology (wintec), multiple sensors can be positioned in close proximity without any operational interference With a high switching frequency and a laser class 1 rating, these sensors are safe for human interaction, making them a reliable choice for various applications.

Features and Benefits:

    •Analog output (0...10 V/4...20 mA).

    •Graphical display for easy operation.

    •Secure detection of black objects also in extremely inclined positions with wintec.

    •Reliable in case of glossy objects with wintec.

    •2 mutually independent switching outputs.

Specifications:

 Working Range 50 ... 3,050 mm
 Measuring Range 3,000 mm
 Reproducibility maximum 1 mm
 Linearity Deviation (200…3050 mm) 7 mm
 Linearity Deviation (50…200 mm) 15 mm
 Switching Hysteresis 3 ... 20 mm
 Light Source Laser (red)
 Wavelength 660 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Beam Divergence < 2 mrad
 Reflector required no
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 70 mA
 Switching Frequency 250 Hz
 Measuring Rate 1 ... 500 /s
 On-/Off-Delay 0 ... 10,000 ms
 Temperature Drift < 0.4 mm/K
 Temperature Range -40 ... 50 °C
 Number of Switching Outputs 2
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 100 mA
 Analog Output yes
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Teach Mode HT, VT, FT, TP
 Interface RS-232
 Protection Class III
 Setting Method Menu (OLED)
 Housing Material Plastic, ABS, Plastic, PC
 Optic Cover Plastic, PMMA
 Degree of Protection IP68
 Connection M12 × 1; 8-pin
 MTTFd (EN ISO 13849-1) 344.3 a
 Output Error Output yes
 RS-232 Interface yes
 Adjustable parameters Analog output 0...10 V, 4...20 mA, Other parameters can be found in the product documentation.
