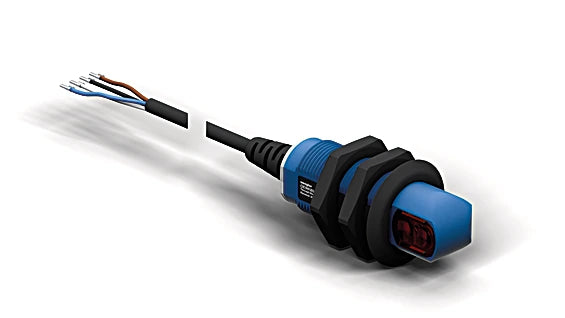

OTWK502A0091 - Reflex Sensor for Distance Detection and Light Reflection

OTWK502A0091 - Reflex Sensor for Distance Detection and Light Reflection

SKU: OTWK502A0091 Download PDF

Variant:
  • OTWK502A0091 - Reflex Sensor for Distance Detection and Light Reflection
Now $69.30
BEFORE   $0.00 Now $69.30
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience cutting-edge functionality with these integrated sensors, which house both transmitter and receiver in a single unit These sensors analyze the light reflected from objects, enabling them to detect when an object enters the chosen range They are particularly effective at distinguishing bright objects, which reflect more light, allowing for recognition from greater distances.

Features and Benefits:

    •Adjustable detection range.

    •Clever inclusive mounting technology.

    •Simple installation.

    •Large detection range.

    •Minimal installation space.

Specifications:

 Range 500 mm
 Switching Hysteresis < 15 %
 Light Source Infrared Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Opening Angle 5 °
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 30 mA
 Switching Frequency 500 Hz
 Response Time 1 ms
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 PNP Switching Output / Switching Current 200 mA
 Residual Current Switching Output < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, ABS/GF
 Degree of Protection IP67
 Connection Cable; 4-wire
 Cable Length 2 m
 Cable Jacket Material PVC
 MTTFd (EN ISO 13849-1) 2,200.73 a
 Scope of delivery 1 × mounting console
 Packaging unit 1 Piece
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
