Description:

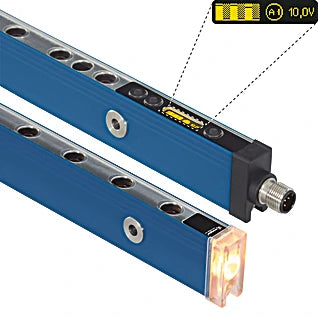

Introducing our advanced Light Curtain designed specifically for measurement applications This innovative system integrates an evaluation unit, so there’s no need for external connections It effectively identifies objects through digital output while providing measurements via analog output The user-friendly setup is made easy with a graphic display that operates via a menu system Plus, streamline your diagnostics and settings with the IO-Link interface for hassle-free parametrization.

Perfect for precise measuring tasks!.

Features and Benefits:

•Integrated evaluation unit eliminating the need for external connection units.

•Objects can be recognized and measured.

•Easy setup with menu-controlled graphic display.

•Convenient parametrization via IO-Link interface.

Specifications:

Range:	3,000 mm
Measurement Field Height (MFH):	150 mm
Beam Distance:	30 mm
Light Source:	Infrared Light
Service Life (T = +25 °C):	100,000 h
Sensor Type:	Emitter
Supply Voltage:	18 ... 30 V DC
Current Consumption (Ub = 24 V):	< 50 mA
Temperature Drift:	< 10 %
Temperature Range:	-25 ... 60 °C
Short Circuit Protection:	yes
Reverse Polarity Protection:	yes
Overload Protection:	yes
Test input:	yes
Protection Class:	III
Housing Material:	Aluminum, powder-coated
Optic Cover:	Plastic, PC
Degree of Protection:	IP65
Connection:	M12 × 1; 4-pin
MTTFd (EN ISO 13849-1):	1,106.6 a
