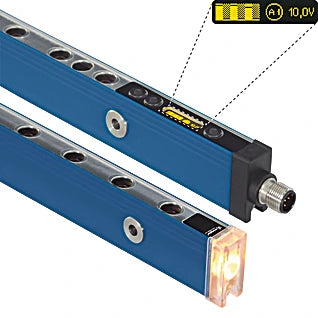

OSEB123Z0103 - Integrated Light Curtains for Measurement Tasks with Easy Setup

SKU: SKU: OSEB123Z0103 Download PDF

Select a Variant:

OSEB123Z0103 - Integrated Light Curtains for Measurement Tasks with Easy Setup

SET THE QTY:

Now $634.00 Web pricing policy

~~BEFORE $0.00~~ Now $634.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing these advanced light curtains designed for accurate measurement tasks Featuring a built-in evaluation unit, there’s no need for additional external connection units These light curtains can detect objects through a digital output and perform measurements with an analog output Setting them up is a breeze thanks to the user-friendly menu-controlled graphic display, which simplifies parametrization and offers swift diagnostics via the IO-Link interface.

Features and Benefits:

•Integrated evaluation unit eliminates the need for external connection units.

•Objects recognized via digital output and measured via analog output.

•Easy setup with menu-controlled graphic display.

•Convenient parametrization through IO-Link interface.

•High service life of 100,000 hours at +25 °C.

Specifications:

Range	3000 mm
Measurement Field Height (MFH)	1200 mm
Beam Distance	30 mm
Light Source	Infrared Light
Supply Voltage	18 ... 30 V DC
Current Consumption (Ub = 24 V)	< 50 mA
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III
Housing Material	Aluminum, powder-coated; Plastic, PA
Optic Cover	Plastic, PC
Degree of Protection	IP65
Connection	M12 × 1; 4-pin
MTTFd (EN ISO 13849-1)	537.26 a
